600V PVC Insulation PVC Sheath armored control Cable with copper wire braided

Compliances

Armored Control Wire with braided screen could be buried directly when need long range control equipment, armored could protect cable from compressional deformation, and braided could keep the signal steady

    Application

    Armored Control Wire with braided screen could be buried directly when need long range control equipment, armored could protect cable from compressional deformation, and braided could keep the signal steady

    Application

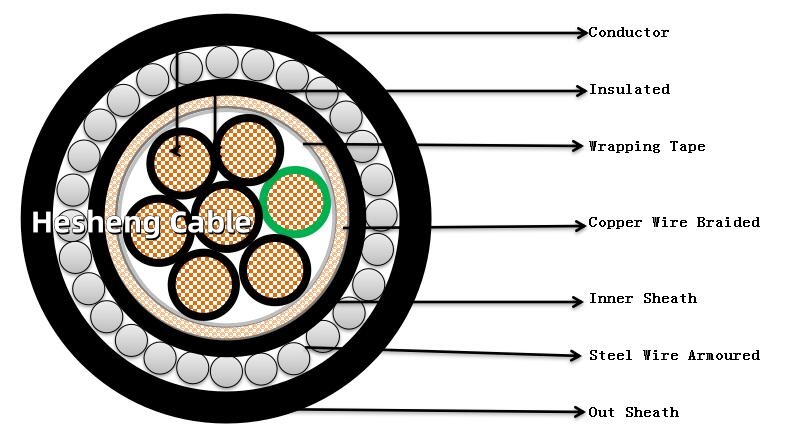

    Conductor: Concentric Stranded copper wire
    Insulation: PVC Black color
    Identification : Printed White number on the surface of Black insulation
    Screen: Copper Wire Braided or Copper Tape
    Inner Sheath: Black PVC
    Armored: galvanized steel wire or double Steel Tape
    Sheath : PVC Black color

    Parameters of Armored Control Cable with shielded

    Chart of copper Conductor armored control wire with copper wire braided screen7k7
    No. of core Nominal cross- sectional area sq.mm No.& dia. of wires No./mm Thickness of Insulation mm Thickness of sheath mm Overall diameter (Approx.) mm Maximum conductor resistance (at20C) Ohm/km Cable weight (Approx.) kg/km
    3 0.5 7/0.30 0.8 1.8 10.1 36 112
    0.75 7/0.37 0.8 1.8 10.6 24.5 127
    1 7/0.40 0.8 1.8 11.1 18.1 137
    1.5 7/0.50 0.8 1.8 11.6 12.1 162
    2.5 7/0.67 0.8 1.8 13.1 7.41 222
    4 7/0.85 1 1.8 15.1 4.61 317
    6 7/1.04 1 1.8 16.6 3.08 407
    5 0.5 7/0.30 0.8 1.8 11.6 36 152
    0.75 7/0.37 0.8 1.8 12.6 24.5 177
    1 7/0.40 0.8 1.8 12.6 18.1 192
    1.5 7/0.50 0.8 1.8 13.6 12.1 232
    2.5 7/0.67 0.8 1.8 15.1 7.41 322
    4 7/0.85 1 1.8 18.1 4.61 472
    6 7/1.04 1 1.8 19.6 3.08 622
    7 0.5 7/0.30 0.8 1.8 12.6 36 172
    0.75 7/0.37 0.8 1.8 13.1 24.5 202
    1 7/0.40 0.8 1.8 13.6 18.1 217
    1.5 7/0.50 0.8 1.8 14.6 12.1 272
    2.5 7/0.67 0.8 1.8 16.1 7.41 382
    4 7/0.85 1 1.8 19.6 4.61 572
    6 7/1.04 1 1.8 21.1 3.08 797
    9 0.5 7/0.30 0.8 1.8 14.1 36 222
    0.75 7/0.37 0.8 1.8 15.1 24.5 267
    1 7/0.40 0.8 1.8 15.6 18.1 287
    1.5 7/0.50 0.8 1.8 16.6 12.1 357
    2.5 7/0.67 0.8 1.8 18.6 7.41 507
    4 7/0.85 1 1.8 22.6 4.61 762
    6 7/1.04 1 1.8 24.6 3.08 1017
    12 0.5 7/0.30 0.8 1.8 15.6 36 267
    0.75 7/0.37 0.8 1.8 16.6 24.5 322
    1 7/0.40 0.8 1.8 17.1 18.1 347
    1.5 7/0.50 0.8 1.8 18.6 12.1 442
    2.5 7/0.67 0.8 1.8 21.1 7.41 632
    4 7/0.85 1 1.8 25.1 4.61 952
    6 7/1.04 1 1.8 27.6 3.08 1272
    14 0.5 7/0.30 0.8 1.8 16.6 36 302
    0.75 7/0.37 0.8 1.8 17.6 24.5 362
    1 7/0.40 0.8 1.8 18.1 18.1 392
    1.5 7/0.50 0.8 1.8 19.6 12.1 497
    2.5 7/0.67 0.8 1.8 22.1 7.41 717
    4 7/0.85 1 1.8 26.6 4.61 1087
    6 7/1.04 1 1.8 29.1 3.08 1457
    15 0.5 7/0.30 0.8 1.8 17.1 36 332
    0.75 7/0.37 0.8 1.8 18.6 24.5 397
    1 7/0.40 0.8 1.8 19.1 18.1 427
    1.5 7/0.50 0.8 1.8 20.6 12.1 547
    2.5 7/0.67 0.8 1.8 23.1 7.41 787
    4 7/0.85 1 1.8 28.1 4.61 1197
    6 7/1.04 1 1.8 31.1 3.08 1602
    16 0.5 7/0.30 0.8 1.8 17.1 36 332
    0.75 7/0.37 0.8 1.8 18.6 24.5 402
    1 7/0.40 0.8 1.8 19.1 18.1 437
    1.5 7/0.50 0.8 1.8 20.6 12.1 557
    2.5 7/0.67 0.8 1.8 23.1 7.41 807
    4 7/0.85 1 1.8 28.1 4.61 1232
    6 7/1.04 1 1.8 31.1 3.08 1652
    19 0.5 7/0.30 0.8 1.8 18.1 36 367
    0.75 7/0.37 0.8 1.8 19.1 24.5 447
    1 7/0.40 0.8 1.8 19.6 18.1 482
    1.5 7/0.50 0.8 1.8 21.6 12.1 622
    2.5 7/0.67 0.8 1.8 24.1 7.41 907
    4 7/0.85 1 1.8 29.6 4.61 1387
    6 7/1.04 1 1.9 32.6 3.08 1887

    Do you know the difference of control wire between braided screen and copper tape?

    The distinction between a copper wire braided shielded control cable and a copper tape shielded control cable primarily hinges on the divergence in the shielding material and structure.
    The shielding material is composed of: The shielding material of the copper wire braided shielded control cable is constituted of braided copper wire, whereas that of the copper tape shielded control cable is constituted of copper tape.
    The structural differences between the two types of cable are as follows: The shielding structure of the copper wire braided shielded control cable is constituted by interwoven copper wires, whereas the shielding structure of the copper tape shielded control cable is formed by one or more layers of copper tape.
    The performance of the two types of cable differs in terms of flexibility and adaptability. Copper wire braiding allows for greater flexibility and adaptability, making it suitable for use in situations where the cable is required to bend and move frequently. In contrast, copper tape shielding provides superior shielding performance and corrosion resistance, making it well-suited for applications where high electromagnetic interference protection is necessary.
    The choice between copper braided shielded control cable and copper tape shielded control cable should be made based on a comprehensive assessment of the specific application and requirements. This ensures that the most appropriate cable type is selected to meet the desired performance and protection needs.
