Application
This screen cable is used in machine tools, construction, heating, and air conditioning. It is well protected against electrical interference, ensuring the undisturbed transmission of pulses and signals.

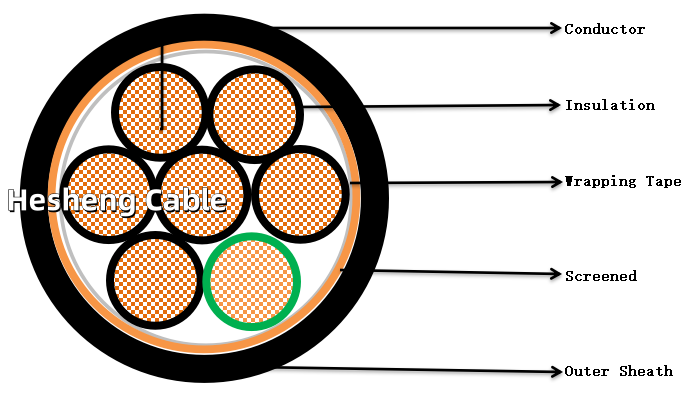

Construction
Conductor: copper Conductor
Insulation: XLPE
Identification : Printed White number on the surface of Black insulation
Screen: Copper Tape
Binding tape: Suitable tape
Sheath : PVC Black color
Parameters
| No. of core | Nominal cross- sectional area sq.mm | No.& dia. of wires No./mm | Thickness of Insulation mm | Thickness of sheath mm | Overall diameter (Approx.) mm | Maximum conductor resistance (at20C) Ohm/km | Cable weight (Approx.) kg/km |
| 3 | 0.5 | 7/0.30 | 0.8 | 1.8 | 10.3 | 36 | 113 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 10.8 | 24.5 | 128 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 11.3 | 18.1 | 138 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 11.8 | 12.1 | 163 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 13.3 | 7.41 | 223 | |
| 4 | 7/0.85 | 1 | 1.8 | 15.3 | 4.61 | 318 | |
| 6 | 7/1.04 | 1 | 1.8 | 16.8 | 3.08 | 408 | |
| 5 | 0.5 | 7/0.30 | 0.8 | 1.8 | 11.8 | 36 | 153 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 12.8 | 24.5 | 178 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 12.8 | 18.1 | 193 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 13.8 | 12.1 | 233 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 15.3 | 7.41 | 323 | |
| 4 | 7/0.85 | 1 | 1.8 | 18.3 | 4.61 | 473 | |
| 6 | 7/1.04 | 1 | 1.8 | 19.8 | 3.08 | 623 | |
| 7 | 0.5 | 7/0.30 | 0.8 | 1.8 | 12.8 | 36 | 173 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 13.3 | 24.5 | 203 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 13.8 | 18.1 | 218 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 14.8 | 12.1 | 273 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 16.3 | 7.41 | 383 | |
| 4 | 7/0.85 | 1 | 1.8 | 19.8 | 4.61 | 573 | |
| 6 | 7/1.04 | 1 | 1.8 | 21.3 | 3.08 | 798 | |
| 10 | 0.5 | 7/0.30 | 0.8 | 1.8 | 15.8 | 36 | 243 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 16.3 | 24.5 | 288 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 16.8 | 18.1 | 313 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 18.3 | 12.1 | 388 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 20.3 | 7.41 | 553 | |
| 4 | 7/0.85 | 1 | 1.8 | 24.8 | 4.61 | 828 | |
| 6 | 7/1.04 | 1 | 1.8 | 27.3 | 3.08 | 1103 | |
| 12 | 0.5 | 7/0.30 | 0.8 | 1.8 | 15.8 | 36 | 268 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 16.8 | 24.5 | 323 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 17.3 | 18.1 | 348 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 18.8 | 12.1 | 443 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 21.3 | 7.41 | 633 | |
| 4 | 7/0.85 | 1 | 1.8 | 25.3 | 4.61 | 953 | |
| 6 | 7/1.04 | 1 | 1.8 | 27.8 | 3.08 | 1273 | |
| 14 | 0.5 | 7/0.30 | 0.8 | 1.8 | 16.8 | 36 | 303 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 17.8 | 24.5 | 363 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 18.3 | 18.1 | 393 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 19.8 | 12.1 | 498 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 22.3 | 7.41 | 718 | |
| 4 | 7/0.85 | 1 | 1.8 | 26.8 | 4.61 | 1088 | |
| 6 | 7/1.04 | 1 | 1.8 | 29.3 | 3.08 | 1458 | |
| 16 | 0.5 | 7/0.30 | 0.8 | 1.8 | 17.3 | 36 | 333 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 18.8 | 24.5 | 403 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 19.3 | 18.1 | 438 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 20.8 | 12.1 | 558 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 23.3 | 7.41 | 808 | |
| 4 | 7/0.85 | 1 | 1.8 | 28.3 | 4.61 | 1233 | |
| 6 | 7/1.04 | 1 | 1.8 | 31.3 | 3.08 | 1653 | |
| 19 | 0.5 | 7/0.30 | 0.8 | 1.8 | 18.3 | 36 | 368 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 19.3 | 24.5 | 448 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 19.8 | 18.1 | 483 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 21.8 | 12.1 | 623 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 24.3 | 7.41 | 908 | |
| 4 | 7/0.85 | 1 | 1.8 | 29.8 | 4.61 | 1388 | |
| 6 | 7/1.04 | 1 | 1.9 | 32.8 | 3.08 | 1888 |
Do you know the advantage of control wire with copper tape screen
Copper-shielded control cables offer a number of advantages over other types of control cables.
Insulation: XLPE
The cables demonstrate effective electromagnetic shielding performance. The utilisation of copper tape shielding serves to effectively suppress external electromagnetic interference, thereby ensuring the stable transmission of control signals. This makes it particularly well-suited to control systems that require high anti-interference capabilities.
The material exhibits robust mechanical protection capabilities. In its role as a shielding layer, the copper tape also exhibits effective mechanical protection performance, which serves to prevent the impact of external physical damage on the interior of the cable and thereby extend the service life of the cable.
The material exhibits good corrosion resistance. Copper strips exhibit favourable corrosion resistance and are therefore suitable for deployment in specific environments, including chemical plants and marine environments.
The provision of grounding protection: The utilisation of copper tape as a grounding layer serves to ground the signals within the cable, thereby mitigating the impact of static electricity and lightning strikes on the cable, and enhancing the overall safety of the system.
In conclusion, the copper tape shielded control cable exhibits favourable electromagnetic shielding, mechanical protection and corrosion resistance characteristics, rendering it a suitable option for utilisation in control systems with elevated requirements for interference resilience and in specific environments.
