Application
Control Flexible Cable is used in machine tool manufacturing, plant engineering and on assembly and production lines. It can be fixed or moved freely without any special controls or exposure to tensile loads. It can be used in dry or moist rooms.

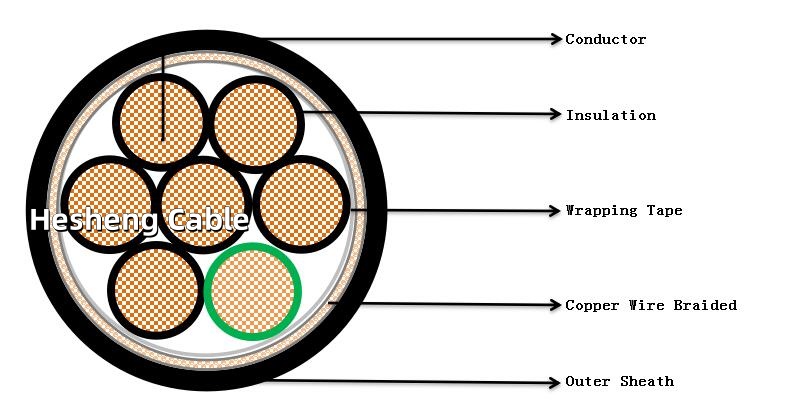

Construction
Conductor: Pure copper Conductor
Insulation: PE Black color
Identification : Printed White number on the surface of Black insulation
Filler: Suitable filler
Screen: Copper Wire or Tinned Copper Wire braided.
Binding tape: Suitable tape
Sheath : LSZH Black color
Parameters of Braided Control Wire
| No. of core | Nominal cross- sectional area sq.mm | No.& dia. of wires No./mm | Thickness of Insulation mm | Thickness of sheath mm | Overall diameter (Approx.) mm | Maximum conductor resistance (at20C) Ohm/km | Cable weight (Approx.) kg/km |
| 3 | 0.5 | 7/0.30 | 0.8 | 1.8 | 10.1 | 36 | 112 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 10.6 | 24.5 | 127 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 11.1 | 18.1 | 137 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 11.6 | 12.1 | 162 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 13.1 | 7.41 | 222 | |
| 4 | 7/0.85 | 1 | 1.8 | 15.1 | 4.61 | 317 | |
| 6 | 7/1.04 | 1 | 1.8 | 16.6 | 3.08 | 407 | |
| 4 | 0.5 | 7/0.30 | 0.8 | 1.8 | 11.1 | 36 | 132 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 11.6 | 24.5 | 152 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 11.6 | 18.1 | 162 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 12.6 | 12.1 | 197 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 14.1 | 7.41 | 267 | |
| 4 | 7/0.85 | 1 | 1.8 | 16.6 | 4.61 | 392 | |
| 6 | 7/1.04 | 1 | 1.8 | 17.1 | 3.08 | 512 | |
| 5 | 0.5 | 7/0.30 | 0.8 | 1.8 | 11.6 | 36 | 152 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 12.6 | 24.5 | 177 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 12.6 | 18.1 | 192 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 13.6 | 12.1 | 232 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 15.1 | 7.41 | 322 | |
| 4 | 7/0.85 | 1 | 1.8 | 18.1 | 4.61 | 472 | |
| 6 | 7/1.04 | 1 | 1.8 | 19.6 | 3.08 | 622 | |
| 6 | 0.5 | 7/0.30 | 0.8 | 1.8 | 12.6 | 36 | 167 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 13.1 | 24.5 | 192 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 13.6 | 18.1 | 207 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 14.6 | 12.1 | 257 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 16.1 | 7.41 | 357 | |
| 4 | 7/0.85 | 1 | 1.8 | 19.6 | 4.61 | 527 | |
| 6 | 7/1.04 | 1 | 1.8 | 21.1 | 3.08 | 692 | |
| 7 | 0.5 | 7/0.30 | 0.8 | 1.8 | 12.6 | 36 | 172 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 13.1 | 24.5 | 202 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 13.6 | 18.1 | 217 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 14.6 | 12.1 | 272 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 16.1 | 7.41 | 382 | |
| 4 | 7/0.85 | 1 | 1.8 | 19.6 | 4.61 | 572 | |
| 6 | 7/1.04 | 1 | 1.8 | 21.1 | 3.08 | 797 | |
| 9 | 0.5 | 7/0.30 | 0.8 | 1.8 | 14.1 | 36 | 222 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 15.1 | 24.5 | 267 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 15.6 | 18.1 | 287 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 16.6 | 12.1 | 357 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 18.6 | 7.41 | 507 | |
| 4 | 7/0.85 | 1 | 1.8 | 22.6 | 4.61 | 762 | |
| 6 | 7/1.04 | 1 | 1.8 | 24.6 | 3.08 | 1017 | |
| 10 | 0.5 | 7/0.30 | 0.8 | 1.8 | 15.6 | 36 | 242 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 16.1 | 24.5 | 287 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 16.6 | 18.1 | 312 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 18.1 | 12.1 | 387 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 20.1 | 7.41 | 552 | |
| 4 | 7/0.85 | 1 | 1.8 | 24.6 | 4.61 | 827 | |
| 6 | 7/1.04 | 1 | 1.8 | 27.1 | 3.08 | 1102 | |
| 15 | 0.5 | 7/0.30 | 0.8 | 1.8 | 17.1 | 36 | 332 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 18.6 | 24.5 | 397 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 19.1 | 18.1 | 427 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 20.6 | 12.1 | 547 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 23.1 | 7.41 | 787 | |
| 4 | 7/0.85 | 1 | 1.8 | 28.1 | 4.61 | 1197 | |
| 6 | 7/1.04 | 1 | 1.8 | 31.1 | 3.08 | 1602 | |
| 19 | 0.5 | 7/0.30 | 0.8 | 1.8 | 18.1 | 36 | 367 |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 19.1 | 24.5 | 447 | |
| 1 | 7/0.40 | 0.8 | 1.8 | 19.6 | 18.1 | 482 | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 21.6 | 12.1 | 622 | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 24.1 | 7.41 | 907 | |
| 4 | 7/0.85 | 1 | 1.8 | 29.6 | 4.61 | 1387 | |
| 6 | 7/1.04 | 1 | 1.9 | 32.6 | 3.08 | 1887 |
What is braided wire
Braided wire, also known as braided cable or wire rope, is a wire construction made of multiple strands of wire braided or braided together to form a flexible yet strong assembly. The braiding process involves winding individual strands together to create a cable with enhanced flexibility, durability, and resistance to stretch and bending.
Braided wire is commonly used in a variety of applications, including:
Electrical Wiring: Braided wire is commonly used in electrical applications that require flexibility and durability, such as high-flex applications, power transmission, and ground connections.
Mechanical and Industrial Applications: It is used in lifting, hoisting, rigging and suspension applications in mechanical and industrial environments where strength and flexibility are critical.
Automotive and Aerospace: Braided wire is used in the automotive and aerospace industries for applications such as control cables, wire harnesses, and other critical components that require flexibility and reliability.
Electronic equipment: used for shielding and grounding in electronic equipment and devices, and as a soft conductor in various types of cables.
Braided wire offers several advantages, including high flexibility, fatigue resistance, excellent electrical conductivity, and the ability to withstand mechanical stress. Braided construction provides enhanced strength and durability, making it suitable for demanding applications where flexibility and reliability are critical.
