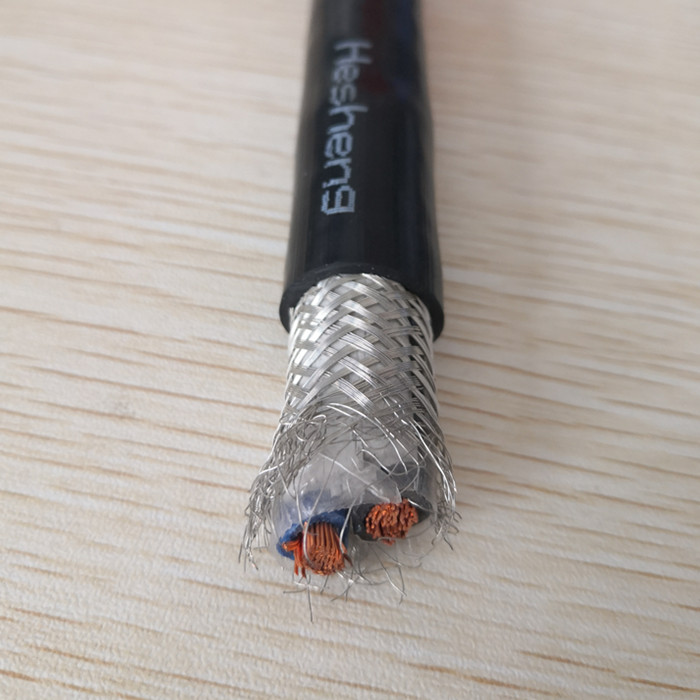

ZTE 3G/4G/5G 600v Shielded dc RRU Copper braided screen power cable for Base station
Compliances
Application
Based Station Cable is used in remote radio unit supplying 48V DC Power in outdoor or indoor. The remote radio unit cable are designed for communication purpose, used in a radio base station,the connection between the rru and the controller is generally optical. The braided shield protect the signal from disturbed when transmit data in 3g,4g,5g, 5.5g
Hot Sizes of RRU DC Shielded Cable
1.2x4mm2, 2x6mm2, 2x10m2, 2x16mm2, 2x25mm2,
2.2*12awg. 2*10awg, 2*8awg, 2*6awg, 2*4awg
2.2*12awg. 2*10awg, 2*8awg, 2*6awg, 2*4awg
Standard
IEC 60332-3, IEC60228, UL 1581

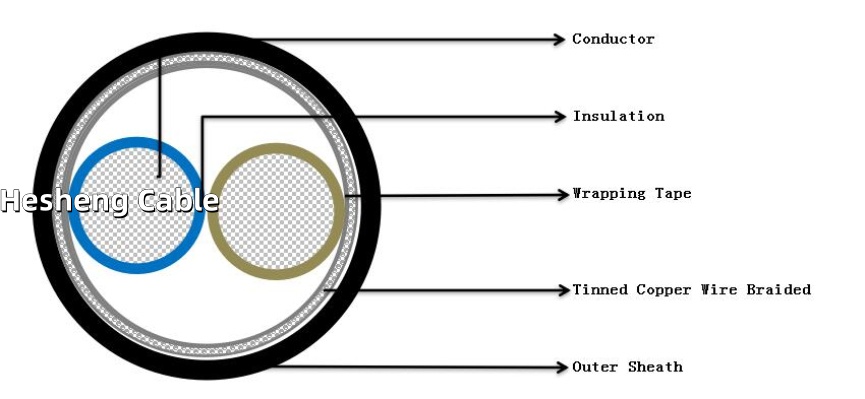

Construction
Conductor Material: Class 5 Tinned Copper Wire, Class 5 copper wire, aluminum alloy etc.
Insulation Material: PVC, Low Smoke Zero Halogen or XLPE (Crosslinked Polyethylene)
Colour of Insulation: Black and Grey
Screened Material: Aluminum Foil+Tinned Copper Wire Braided
Out Sheath Material: Low Smoke Zero Halogen
Colour of Sheath: Black or Grey
Insulation Material: PVC, Low Smoke Zero Halogen or XLPE (Crosslinked Polyethylene)
Colour of Insulation: Black and Grey
Screened Material: Aluminum Foil+Tinned Copper Wire Braided
Out Sheath Material: Low Smoke Zero Halogen
Colour of Sheath: Black or Grey
Technical Data
Working Temperature of PVC: 70°C
Working Temperature of XLPE:90°C
Working Temperature of LSZH:90°C
Shielded Flexible Cable:R≥ 6D
Voltage:300/500V
Working Temperature of XLPE:90°C
Working Temperature of LSZH:90°C
Shielded Flexible Cable:R≥ 6D
Voltage:300/500V
| No. of cores and cross-section mm2 | Conductor | Insulation | Dia OF Insulation | DIA of Braided | Out Sheath | DIA of Cable | Cable weight kg/km | Resistance of Cable |
| 2*2.5mm2 | 49/0.25 | 0.7 | 3.5 | 0.15 | 1.2 | 9.8 | 170 | 7.98 |
| 2*4mm2 | 56/0.3 | 0.7 | 4 | 0.15 | 1.2 | 10.8 | 185 | 4.95 |
| 2*6mm2 | 84/0.3 | 0.7 | 5.2 | 0.15 | 1.2 | 13.2 | 250 | 3.3 |
| 2*10mm2 | 84/0.4 | 0.7 | 6.5 | 0.15 | 1.4 | 16.2 | 300 | 1.91 |
| 2*16mm2 | 126/0.4 | 0.7 | 7.4 | 0.15 | 1.4 | 18 | 370 | 1.21 |
| 2*25mm2 | 196/0.4 | 0.9 | 12 | 0.15 | 1.8 | 28 | 640 | 0.78 |
| 2*35mm2 | 276/0.4 | 0.9 | 10.7 | 0.15 | 1.8 | 25.4 | 700 | 0.554 |
1-48 V DC power cable
2 Shield layer
3 Tool-less female connector
2 Shield layer
3 Tool-less female connector
Based Station Power Cable is used in remote radio unit(RRU cable), in general Hesheng Cable called it RRU Cable. RRU Cable supply 48v dc power to an RRU, Hesheng Cable could supply 100m, 150m,200m,300m,500m based on client request, and by default, hesheng cable packs 500m on a wooden drum without connector. If need more service, Just contact with us engineers freely.
We also could supply similar based station power cable in other standard’s market. For example, ZR-RVVP Cable, RYYP Cable, N2XCY Cable, ROV-K Cable, TFL281 Cable, MCMK-HF Cable, XCMK-HF Cable, UL 2464 Cable, AFT Cable ect. Just contact with Hesheng Cable without any hesitate, if u are interested in these cable.
