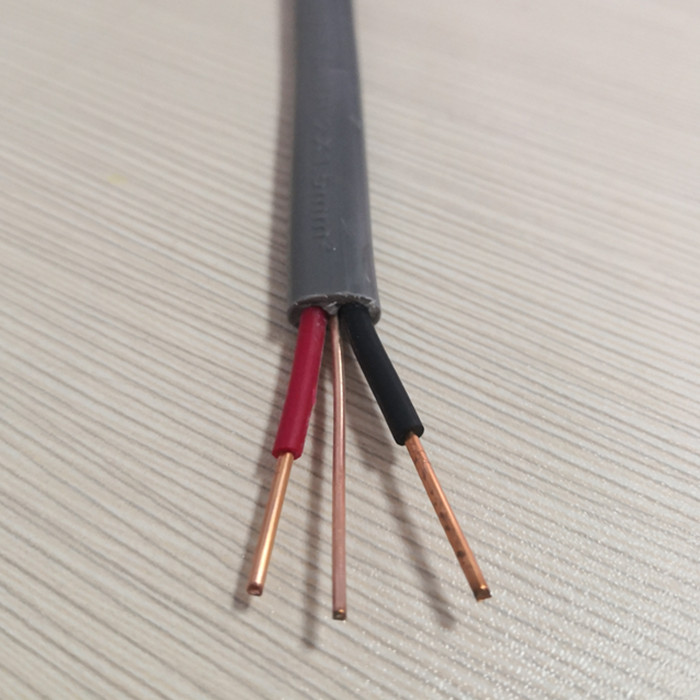

6241Y,6242Y,6243Y Electrical Wire with bare earth conductor According to BS6004

Compliances

In Britain standard, there are there modes is designed for home lighting, 6241Y, 6242Y, 6243Y, they all have a bare conductor as the earth core, they are safe when supplying power for house...

    Application and Description

    In Britain standard, there are there modes is designed for home lighting, 6241Y, 6242Y, 6243Y, they all have a bare conductor as the earth core, they are safe when supplying power for house...

    Cable Construction

     Fine bare copper strands
    - Stranding to IEC 60228 CL-1 or 2
    - PVC insulation type TI1 to BS 7655
    - The core or cores shall be laid parallel with the uninsulated circuit protective conductor
    - For twin cores, the protective conductor centrally placed between cores in same plane
    - For 3 cores, the protective conductor centrally placed between black and grey cores in same plane
    - PVC sheath type T6 to BS 7655

    Core Identification

    2 cores: brown and blue, or, for 2 × 1.0 and 2 × 1.5 cables, brown and brown
    3 cores: brown, black (centre core) and grey

    Technical Characteristics

    - Working voltage  300/500v, 450/750V
    - Test voltage  2000 volts, or 2500V
    - Minimum bending radius  4xOverall diameter
    - Flexing temperature  -15º C to +70º C
    - Short circuit temperature  +160º C
    - Flame retardant  IEC 60332.1
    - Insulation resistance  10 MΩxkm

    Cable Parameter

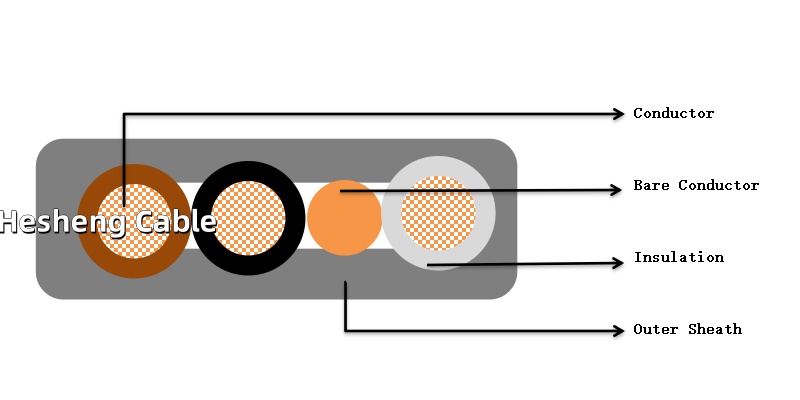

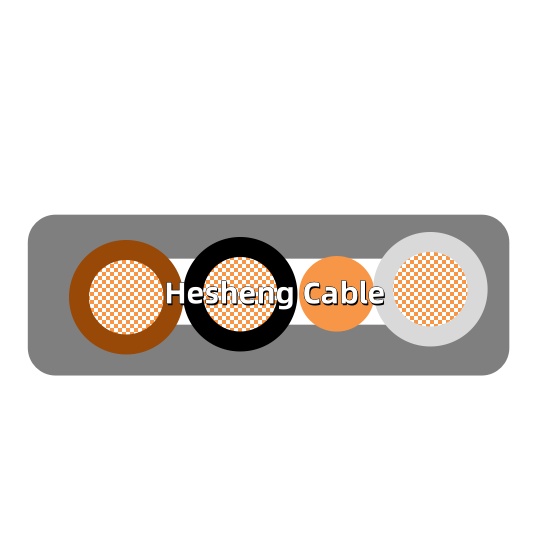

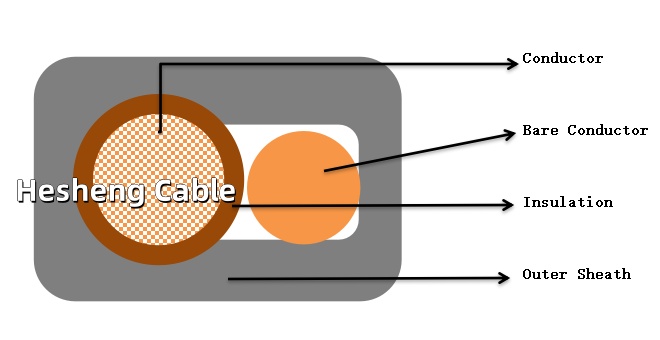

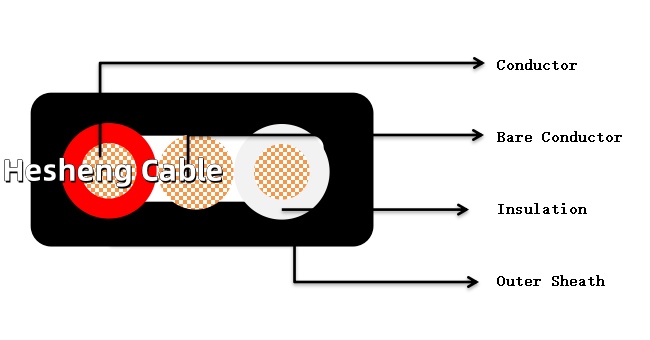

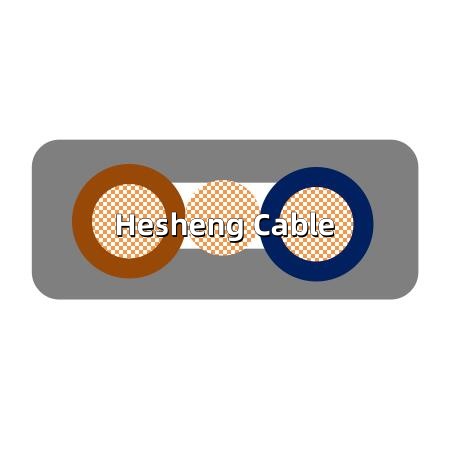

    Construction of 6241Y  Electrical Wire with bare earth conductor According to BS6004rt6Construction of 6242Y  Electrical Wire with bare earth conductor According to BS6004b8eConstruction of 6243Y  Electrical Wire with bare earth conductor According to BS6004w9c
    AWG (No of Strands/ Strand Diameter) No. of Cores x Nominal Cross Sectional Area #xmm² Nominal thickness of insulation mm Nominal thickness of sheath mm Nominal overall dimensions Circuit protective conductor AWG Nominal Weight kg/km
    lower limit mm upper limit mm
    6241Y
    17 1 × 1.0 0.6 0.9 3.9x5.13 4.8x6.0 17 45.5
    16 1 × 1.5 0.7 0.9 4.4x5.42 5.3x6.6 17 55.3
    6242Y
    17 2 × 1.0 0.6 0.9 3.9×7.5 4.8x8.7 17 68.4
    16 2 × 1.5 0.7 0.9 4.4x8.2 5.3x9.7 17 85.6
    14 2 × 2.5 0.8 1 5.1x9.5 6.2x11.7 16 121
    12(7/20) 2 × 4 0.8 1 5.7x10.9 6.9x13.1 16 178
    10(7/18) 2 × 6 0.8 1.1 6.4x12.6 7.8x15.0 14 245
    8(7/16) 2 × 10 1 1.2 7.9x15.4 9.5x18.9 12(7/20) 394
    6(7/14) 2 × 16 1 1.3 8.9x18.2 10.8x21.9 10(7/18) 569
    6243Y
    17 3 × 1.0 0.6 0.9 3.9x9.45 4.8x11.4 17 91.5
    16 3 × 1.5 0.7 0.9 4.4x10.75 5.3x12.9 17 118
    14 3 × 2.5 0.8 1 5.1x12.66 6.2x15.3 17 172
    12(7/20) 3 × 4 0.8 1.1 5.9x14.84 7.1x17.9 16 254
    10(7/18) 3 × 6 0.8 1.1 6.4x16.82 7.8x20.2 14 345
    8(7/16) 3 × 10 1 1.2 7.9x21.32 9.5x25.7 12(7/20) 548
    6(7/14) 3 × 16 1 1.3 8.9x24.61 10.8x29.7 10(7/18) 799

    How to laying house wire safely!

    When laying household electrical wiring, pay attention to the following points:
    Plan the wiring route. Plan the wiring route and decide where each socket, switch and lamp will go. Also, decide how the wires will be connected.
    Choose the right wires. Choose qualified wires that comply with local standards to ensure safety and reliability.
    Safety distance: Keep a safe distance from water pipes, gas pipes, etc. when laying wires.
    Use conduit. Use conduit to protect wires when running them inside walls.
    Fix firmly. When laying wires, fix them firmly to avoid shaking and damage.
    Ground protection: When wiring a house, make sure the grounding wire is connected properly to improve electrical safety.
    Professional construction. If you don't know how to do electrical work, ask a professional electrician to do it.
    When laying wires at home, follow safety rules to make sure it is done safely and correctly. If you're unsure, ask a professional electrician.
