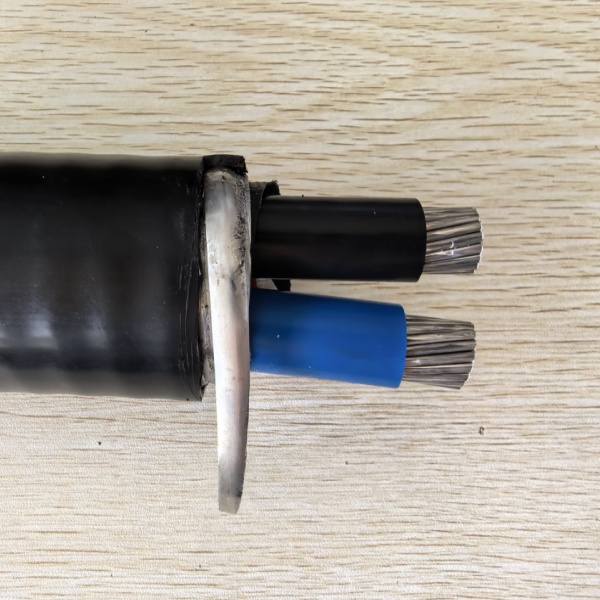

Aluminum Interlocked Amrour (AIA) Cable
Description of Interlocked armored cable
Interlocked Armored Cable is a premium flexible metal-clad wiring solution designed for industrial and commercial applications. Featuring galvanized steel or aluminum armor with interlocking construction, this cable provides superior mechanical protection against crushing, abrasion, and rodent damage. Ideal for power distribution in harsh environments, our UL-listed interlocked armored cables offer excellent EMI shielding and corrosion resistance. Available in various conductor sizes and insulation materials, these cables ensure reliable performance in data centers, manufacturing plants, and underground installations. The innovative interlocking design allows easy bending while maintaining structural integrity. Choose our durable, cost-effective armored cables for your next electrical project requiring enhanced safety and longevity.
Technical datasheet of Chain-linked armored cable
Application:
Aluminum Interlocked Armor Cable: The Ultimate Industrial Wiring Solution
Aluminum interlocked armor cables provide superior protection for demanding industrial applications. These heavy-duty cables feature a unique interlocking metal design that withstands extreme conditions in oil refineries, chemical processing plants, mining operations, and other harsh environments. Unlike standard cables, their robust aluminum armor offers exceptional resistance to:
- Crushing impacts
- Chemical corrosion
- Rodent damage
- Moisture penetration
Key benefits include:
- Direct burial capability without conduit
- Enhanced durability for long-term installations
- Excellent EMI/RFI shielding
- Flexible yet rugged construction
Ideal for:
✔ Hazardous locations
✔ Underground power distribution
✔ High-vibration areas
✔ Corrosive atmospheres
The aluminum construction provides lightweight yet superior protection compared to steel alternatives, making these cables perfect for industrial electrical systems requiring reliable, maintenance-free performance. Their interlocking design allows easy installation while maintaining maximum protection against physical damage.

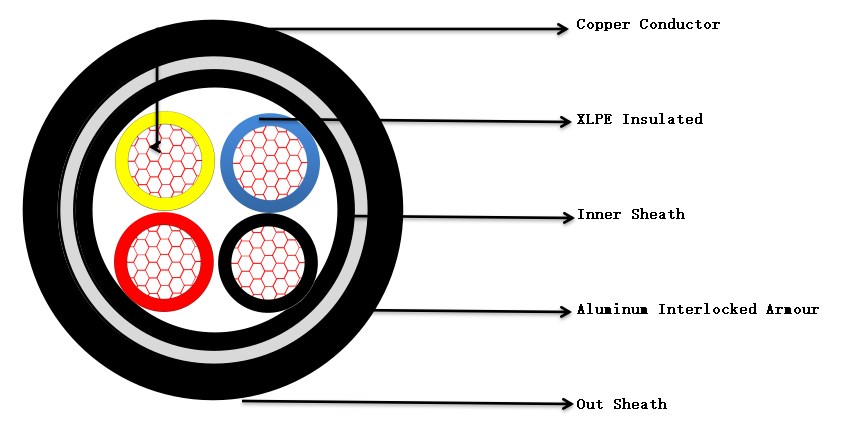

| Construction: | Structure Chart |
|
 |
Technical Parameter:
| Gauge | Conductors | Ground Gauge | Insulation Thickness | Nominal OD over Armor | Outside Diameter Inches | Material Weight (Lbs./M’) | Material Weight (KG/KM) |
| 8 | 3 | 10 | 0.045 | 0.86 | 0.94 | 482 | 717 |
| 8 | 4 | 10 | 0.045 | 0.92 | 1 | 570 | 848 |
| 6 | 3 | 8 | 0.06 | 1.03 | 1.13 | 695 | 1034 |
| 6 | 4 | 8 | 0.06 | 1.04 | 1.25 | 883 | 1314 |
| 4 | 3 | 8 | 0.06 | 1.16 | 1.25 | 950 | 1413 |
| 4 | 4 | 8 | 0.06 | 1.18 | 1.35 | 1161 | 1727 |
| 2 | 3 | 6 | 0.06 | 1.28 | 1.37 | 1300 | 1934 |
| 2 | 4 | 6 | 0.06 | 1.45 | 1.46 | 1568 | 2333 |
| 1/0 | 3 | 6 | 0.08 | 1.56 | 1.68 | 1871 | 2784 |
| 2/0 | 3 | 6 | 0.08 | 1.65 | 1.77 | 2177 | 3239 |
| 3/0 | 3 | 4 | 0.08 | 1.75 | 1.87 | 2619 | 3897 |
| 4/0 | 3 | 4 | 0.08 | 1.86 | 1.98 | 3176 | 4726 |
| 350 | 3 | 3 | 0.09 | 2.26 | 2.4 | 4989 | 7424 |
| 500 | 3 | 3 | 0.09 | 2.52 | 2.66 | 6706 | 9979 |
The Advantages of Interlocked Armor Cables
Interlocked armor cables offer superior protection and durability for demanding electrical applications. Their unique interlocking metal design provides excellent resistance to crushing, abrasion, and rodent damage, making them ideal for industrial, underground, and harsh environments.
Key benefits include:
✔ Enhanced Safety – The armored layer shields against physical damage and EMI interference.
✔ Flexible Installation – Easier to bend than rigid conduits while maintaining high strength.
✔ Corrosion Resistance – Aluminum or galvanized steel options ensure long-term reliability.
✔ Cost-Effective – Reduces maintenance and replacement costs due to extended lifespan.
Widely used in oil refineries, data centers, and mining operations, interlocked armor cables ensure secure and efficient power distribution. Their robust construction makes them a top choice for engineers prioritizing safety and performance.
