0.6/1kv BS5467 XLPE Insulated Armored Cable

BS 5467 Cable is armored by aluminum wire (Single core) or galvanized steel wire(Two, three, four or more cores), It could be burried underground directly.

    Contact us
    Product Detail

    product detail

    Application of BS 5467 Cable

    BS 5467 cables are utilized for the conveyance of electrical power and the regulation of control circuits. The incorporation of a robust galvanized steel wire armor (GSWA) within the BS 5467 cable structure confers a high degree of protection against external damage. This makes the cable suitable for installation within and around buildings, as well as for direct burial in soil.



    What cable is BS5467?

    BS5467 is the British Standard Specification for low-voltage armored cables. These cables are commonly utilized in power networks, underground systems, and cable ducts. They are designed to withstand mechanical stress and provide protection against moisture and other environmental factors. The BS5467 standard specifies the construction, dimensions, and electrical properties of cables, ensuring their suitability for a variety of industrial and commercial applications.





    Construction

    Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

    Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

    1 Core : Brown

    2 Cores: Brown , Blue

    3 Cores: Brown, Black, Grey

    4 Cores: Blue, Brown, Black, Grey

    5 Cores: Green/Yellow, Blue, Brown, Black, Grey

    Above 5 Cores: White Cores with black numbers

    Inner Sheath: PVC, LSZH, PE

    Armored:

    Single Core: Aluminum Wire

    Multcores:galvanized steel wire

    Out Sheath: PVC, LSZH, PVC



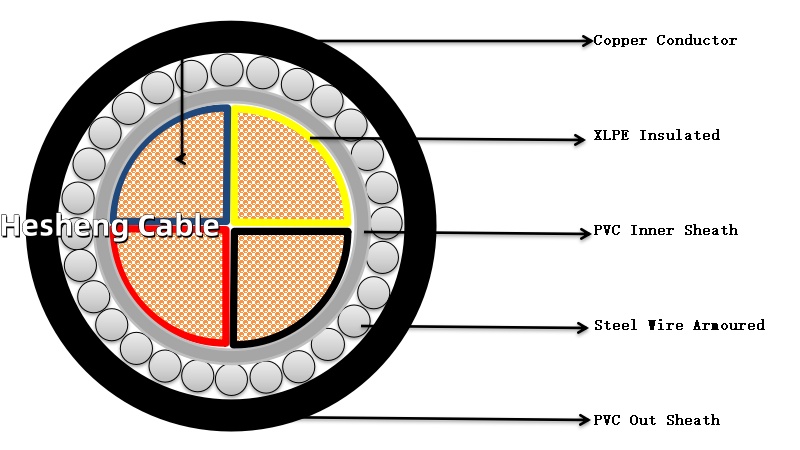

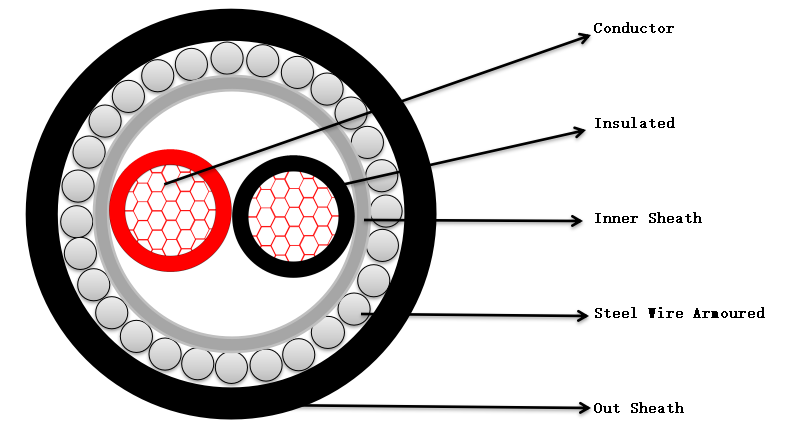

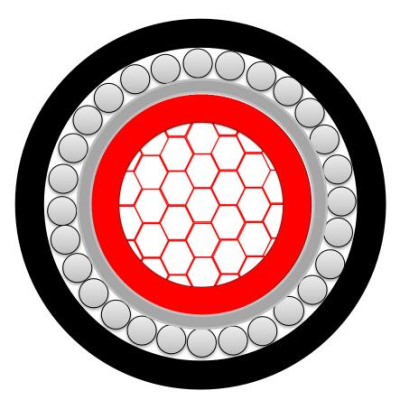

    Structure of Single Core Aluminum Wire Armorred LV Cable.png Controcture of SWA XLPE ELECTRICAL CABLE-Hesheng Cable.jpg Controcture of SWA XLPE Power CABLE-Hesheng Cable.jpg Construction of BS5467 Four Cores Armored Cable.jpg

    Parameters:

    Nominal Cross-sectional Area

    Nominal Insulation thickness

    Nominal beddingthickness

    Nominal Alum Wire dia.

    Nominal Sheath thickness

    Approx.Overall Diameter

    AprroxWeight

    mm²

    mm

    mm

    mm

    mm

    mm

    kg/km

    1x50

    1.0

    0.8

    0.9

    1.5

    18.5

    810

    1x70

    1.1

    0.8

    1.25

    1.5

    21.2

    1000

    1x95

    1.1

    0.8

    1.25

    1.6

    23.3

    1290

    1x120

    1.2

    0.8

    1.25

    1.6

    25.2

    1560

    1x150

    1.4

    1

    1.6

    1.7

    28.4

    1910

    1x185

    1.6

    1

    1.6

    1.8

    31

    2330

    1x240

    1.7

    1

    1.6

    1.8

    33.8

    2940

    1x300

    1.8

    1

    1.6

    1.9

    36.6

    3590

    1x400

    2.0

    1.2

    2.0

    2.0

    41.5

    4610

    1x500

    2.2

    1.2

    2.0

    2.1

    45.2

    5690

    1x630

    2.4

    1.2

    2.0

    2.2

    49.8

    7170



    Nominal Cross-

    sectional Area

    Nominal Insulation thickness

    Nominal

    bedding

    thickness

    Nominal Steel Wire Armor dia.

    Nominal Sheath thickness

    Approx. OverallDiameter

    Aprr

    Weight

    Extruded bedding

    Taped bedding



    mm²

    mm

    mm

    mm

    mm

    mm

    mm

    kg/km

    2x1.5

    0.6

    0.8

    0.9

    1.4

    12.3

    -

    325

    2x2.5

    0.7

    0.8

    0.9

    1.4

    13.8

    -

    370

    2x4

    0.7

    0.8

    0.9

    1.4

    14.9

    -

    445

    2x6

    0.7

    0.8

    0.9

    1.4

    16.1

    -

    475

    2x10

    0.7

    0.8

    0.9

    1.5

    18.2

    -

    805

    2x16

    0.7

    0.8

    1.25

    1.5

    20.6

    20.6

    905

    2x25

    0.9

    0.8

    1.25

    1.6

    24.3

    24.3

    1245

    2x25*

    0.9

    0.8

    1.25

    1.6

    20.6

    20.6

    1245

    2x35

    0.9

    1

    1.6

    1.7

    27.9

    27.5

    1715

    2x35*

    0.9

    1

    1.6

    1.7

    23.5

    23.1

    1715

    2x50*

    1.0

    1

    1.6

    1.8

    26

    25.6

    1805

    2x70*

    1.1

    1

    1.6

    1.9

    29.2

    28.8

    2325

    2x95*

    1.1

    1.2

    2.0

    2.0

    33.3

    32.5

    3155

    2x120*

    1.2

    1.2

    2.0

    2.1

    36.3

    35.5

    3885

    2x150*

    1.4

    1.2

    2.0

    2.2

    39.5

    38.7

    4825

    2x185*

    1.6

    1.4

    2.5

    2.4

    44.9

    43.7

    5925

    2x240*

    1.7

    1.4

    2.5

    2.5

    49.2

    48

    7305

    2x300*

    1.8

    1.6

    2.5

    2.6

    53.7

    52.1

    8775

    2x400*

    2

    1.6

    2.5

    2.8

    59.2

    57.6

    10910



    Nominal Cross-sectional Area

    Nominal Insulation thickness

    Nominal Beddingthickness

    Nominal Steel Wire Armor dia.

    Nominal Sheath thickness

    Approx. OverallDiameter

    AprroxWeight

    Extruded bedding

    Taped bedding



    mm²

    mm

    mm

    mm

    mm

    mm

    mm

    kg/km

    3x1.5

    0.6

    0.8

    0.9

    1.3

    12.8

    -

    345

    3x2.5

    0.7

    0.8

    0.9

    1.4

    14.3

    -

    413

    3x4

    0.7

    0.8

    0.9

    1.4

    15.5

    -

    503

    3x6

    0.7

    0.8

    0.9

    1.4

    16.8

    -

    605

    3x10

    0.7

    0.8

    1.25

    1.5

    19.7

    -

    920

    3x16

    0.7

    0.8

    1.25

    1.6

    21.8

    21.8

    1135

    3x25

    0.9

    1

    1.6

    1.7

    26.9

    26.5

    1715

    3x25*

    0.9

    1

    1.6

    1.7

    23.8

    23.4

    1715

    3x35

    0.9

    1

    1.6

    1.8

    29.6

    29.2

    2105

    3x35*

    0.9

    1

    1.6

    1.8

    25.9

    25.5

    2105

    3x50*

    1.0

    1

    1.6

    1.8

    28.7

    28.3

    2455

    3x70*

    1.1

    1

    1.6

    1.9

    32.4

    32

    3125

    3x95*

    1.1

    1.2

    2.0

    2.1

    37.2

    36.4

    4315

    3x120*

    1.2

    1.2

    2.0

    2.2

    40.6

    39.8

    5165

    3x150*

    1.4

    1.4

    2.5

    2.3

    45.7

    44.5

    7165

    3x185*

    1.6

    1.4

    2.5

    2.4

    50

    48.8

    8605

    3x240*

    1.7

    1.4

    2.5

    2.6

    55.3

    54.1

    10760

    3x300*

    1.8

    1.6

    2.5

    2.7

    60.4

    58.8

    13085

    3x400*

    2

    1.6

    2.5

    2.9

    66.8

    65.2

    15815



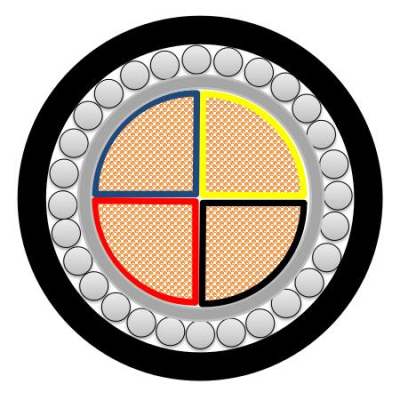

    Nominal Cross-sectional Area

    Nominal Insulation thickness

    Nominal bedding
    thickness

    Nominal Steel Wire Armor dia.

    Nominal Sheath thickness

    Approx. OverallDiameter

    AprroxWeight

    Extruded bedding

    Taped bedding



    mm²

    mm

    mm

    mm

    mm

    mm

    mm

    kg/km

    4x1.5

    0.7

    0.8

    0.9

    1.4

    13.6

    -

    395

    4x2.5

    0.7

    0.8

    0.9

    1.4

    15.3

    -

    475

    4x4

    0.7

    0.8

    0.9

    1.4

    16.7

    -

    585

    4x6

    0.7

    0.8

    1.25

    1.5

    19

    -

    810

    4x10

    0.7

    0.8

    1.25

    1.5

    21.4

    -

    1095

    4x16

    0.7

    0.8

    1.25

    1.6

    23.7

    23.7

    1325

    4x25

    0.9

    1

    1.6

    1.7

    29.2

    28.8

    1845

    4x25*

    0.9

    1

    1.6

    1.7

    26.4

    26

    1845

    4x35

    0.9

    1

    1.6

    1.8

    32.2

    31.8

    2315

    4x35*

    0.9

    1

    1.6

    1.8

    28.9

    28.5

    2315

    4x50*

    1.0

    1

    1.6

    1.9

    32.3

    31.9

    2975

    4x70*

    1.1

    1.2

    2.0

    2.1

    38

    37.2

    4245

    4x95*

    1.1

    1.2

    2.0

    2.2

    42

    41.2

    5405

    4x120*

    1.2

    1.4

    2.5

    2.3

    47.4

    46.2

    7005

    4x150*

    1.4

    1.4

    2.5

    2.4

    51.7

    50.5

    8355

    4x185*

    1.6

    1.4

    2.5

    2.6

    56.9

    55.7

    10135

    4x240*

    1.7

    1.6

    2.5

    2.7

    63.3

    61.7

    12845

    How to use BS 5467 armored cable correctly

    To use BS 5467 armored cable safely and effectively, consider these key points:

    Choose the right cable. Make sure the BS 5467 armored cable is right for the job. Think about things like voltage, current, and the environment.

    Installation guidance: Follow the manufacturer's instructions and the BS 5467 standard. This includes how to route the cable, how to bend it, and how to fix it in place to prevent damage.

    Termination and connections: Use approved ways to connect cables. Prepare cable ends, use termination kits, and follow connection procedures to maintain your cable system.

    Mechanical Protection: Use cable trays, conduits, or other protection to keep cables safe from damage and stress.

    Environmental considerations: Check the environment where the cable is installed to make sure it is protected from moisture, chemicals, and other external factors.

    Compliance: Make sure that BS 5467 armored cables are installed and used correctly to maintain safety and reliability.

    Test and inspect cables to verify proper installation. Test for insulation resistance, continuity, and look for damage or stress.
    Follow these guidelines and best practices to use BS 5467 armored cable correctly. This ensures reliable, safe operation in power distribution and industrial applications.
