Application
Hesheng Cable’ range of airport cables has been designed with operational reliability as a core consideration, encompassing all safety-critical applications. These include airfield lighting and high-speed data cabling for air traffic control, as well as emergency power connectors. The cables have been engineered to withstand exposure to water, UV radiation, defrosting fluids, oils and greases, thereby ensuring the uninterrupted operation of lighting systems in proximity to runways, taxiways and airport buildings.
These cables are employed for the interconnection of transformers and the current regulator of airfield lighting systems in series circuits. They are suitable for fixed applications, including taxiways, runways, touchdown zones, land and hold short lighting systems. Installation is possible in conduit, duct, aerial and direct burial. There are three models available for selection.
Technical Data
| Rated Voltage Uo/U (Um) | 5kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | 5×OD |
| Lead Free | Yes |

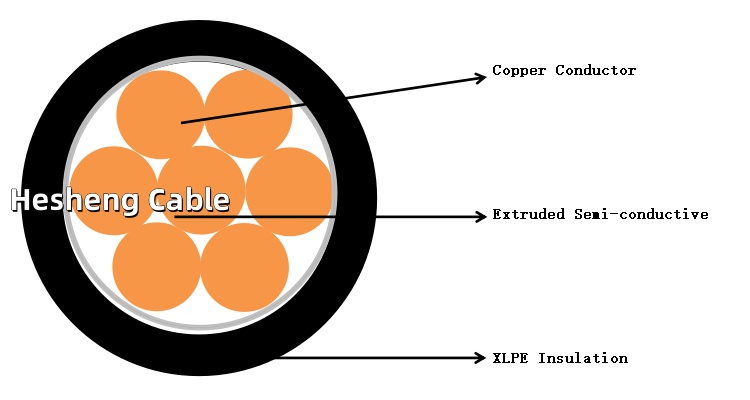

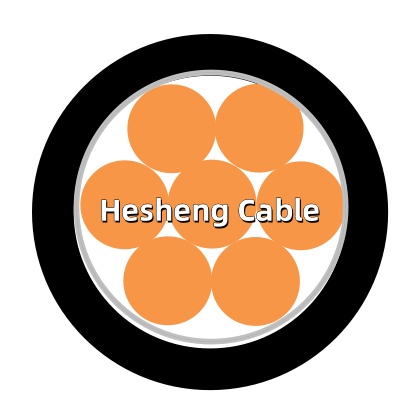

Construction
| Model | 1. Unsheathed | 2. Unshielded | 3. Sheathed |
| Conductor | Yes | Yes | Yes |
| Material of conductor | Stranded Soft Copper | Stranded Soft Copper | Stranded Soft Copper |
| Semi-Conductor | - | - | Yes |
| Insulation | Yes | Yes | Yes |
| Material of Insulation | XLPE | XLPE | XLPE |
| Color of Insulation | Black or As request | Black or As request | Black or As request |
| Semi-Conductor | - | No | Yes |
| Screen | - | - | Yes |
| Material of Screen | - | - | Copper Tape |
| Sheath | - | Yes | Yes |
| Material of Sheath | - | PVC OR PE | PVC OR PE |
| Color of Sheath | - | Black | Black or Request |
Dimensions and Weight
| Cross section | Conductor | Thickness of insulated | Thickness Sheath | Dia of cable | Appr. Weight |
| NO. Strand | |||||
| 8awg | 7 | 2.3 | 0.76 | 9.8 | 96 |
| 6awg | 7 | 2.3 | 0.76 | 10.3 | 129 |
| 4awg | 7 | 2.3 | 1.14 | 13.2 | 168 |
