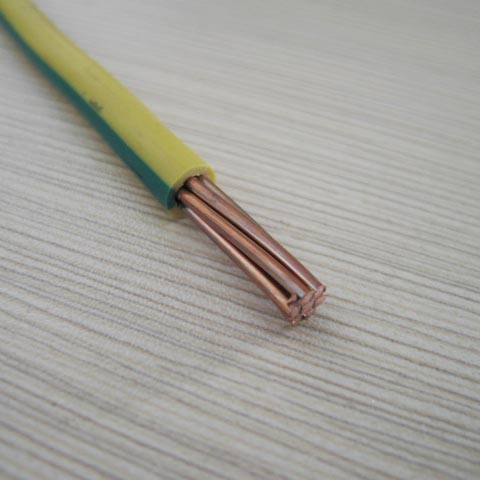

IEC60227 450/750V CU/PVC household wire

Compliances

These electrical wires are suitable for fixed installation to supply power for lighting, in office building, house, school, hospital etc...

    Application

    These electrical wires are suitable for fixed installation to supply power for lighting, in office building, house, school, hospital etc...

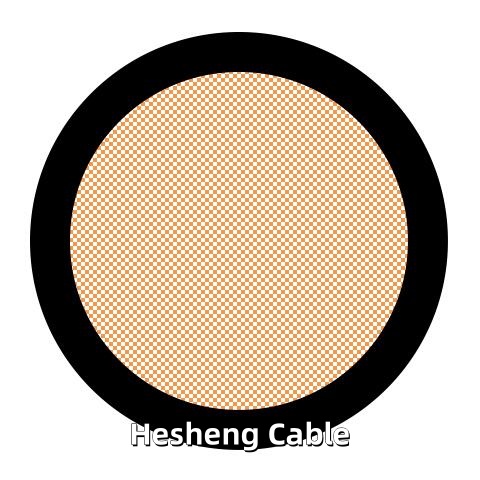

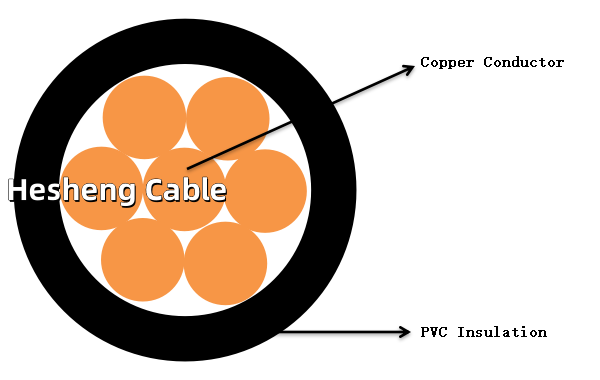

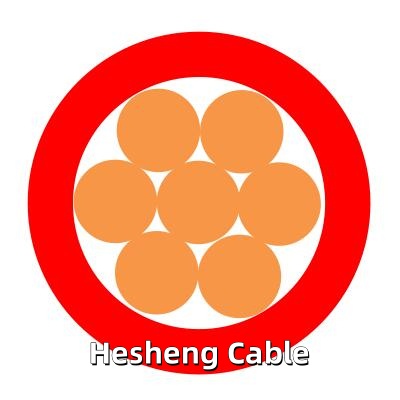

    Conductor: Solid or plain annealed copper class 1, class 2. class 5,according to IEC60228
    Insulated: Polyvinyl Chloride(PVC)
    Colour: Red, Black, Yellow, Grey or Request.

    Specifications

    Chart of IEC60227 Electrical Wireck8
    BV Nominal Cross Section DIA of conductor NO. Of Conductor Thickness of Insulation DIA of Wire Apr. Weight
    1 1.13 1 0.7 2.5 14.7
    1 0.43 7 0.7 2.7 15.5
    1.5 1.38 1 0.7 2.8 19.8
    1.5 0.52 7 0.7 3 20.5
    2.5 1.78 1 0.8 3.4 31.4
    2.5 0.68 7 0.8 3.6 32.8
    4 2.25 1 0.8 3.9 46.6
    4 0.85 7 0.8 4.2 47.4
    6 2.76 1 0.8 4.4 66.1
    6 1.04 7 0.8 4.7 67.1
    10 1.35 7 1 6.1 112
    16 1.7 7 1 7.1 169
    25 2.14 7 1.2 8.8 265.2
    35 2.52 7 1.2 9.9 359
    50 1.78 19 1.4 11.7 489
    70 2.14 19 1.4 13.5 685.2
    95 2.52 19 1.6 15.8 946.8
    120 2.03 37 1.6 17.4 1188
    150 2.25 37 1.8 19.4 1455
    185 2.52 37 2 21.6 1826
    240 2.25 61 2.2 24.7 2382

    How to select best household wire

    The optimal indoor wiring solution is contingent upon the particular specifications of the electrical installation in question. The most commonly utilised indoor wiring materials include:
    Non-Metallic Sheathed Cable (NM or Romex) This type of cable is frequently utilised for domestic wiring applications. It is composed of two or more insulated conductors and a bare ground wire, all encased in a moisture-proof plastic sheath.
    Underground Feeder (UF) Cable: UF cable is designed for direct burial applications and is suitable for use in outdoor and underground wiring in residential environments.
    Armoured Cable (AC): Armoured cable, also referred to as BX cable, is a flexible metal-clad cable that is frequently utilised in residential buildings. The aforementioned cable provides mechanical protection to the electrical conductors situated within.
    Low Smoke Zero Halogen (LSZH) Cable: LSZH cable is optimal for residential applications where low smoke and minimal toxic gas emissions are necessary in the event of a fire.
