10 Ways To Reinvent Your HIGH VOLTAGE POWER CABLE
- High Voltage Power Cable: A Brief Introduction
High Voltage Power Cables (HVPC) are critical components in modern energy infrastructure, designed to transmit electricity at voltages typically exceeding 35 kV1. These cables are engineered to ensure minimal energy loss over long distances while maintaining safety and reliability in demanding environments1. Unlike traditional overhead lines, HVPCs are insulated and shielded, making them ideal for urban grids, underground installations, and industrial complexes where space and safety are paramount1.
- Key Applications of High Voltage Power Cables
HVPCs are versatile and serve as the backbone of multiple industries:
Energy Transmission: Transmitting power from renewable energy farms (e.g., wind, solar) to substations1.
Industrial Facilities: Powering heavy machinery in oil refineries, chemical plants, and mining operations.
Urban Infrastructure: Integrating with smart grids to support high-density urban power demands1.
Transportation Networks: Supplying electricity to railways, airports, and EV charging stations1.
- Product Specifications: Standards, Structure, and Performance
Compliance & Standards
International Standards: IEC 60502 (for cables up to 30 kV) and IEEE 386 (terminations)12.
Fire Safety: CPR-certified (Euroclass B2ca-s1-d2-a1) for low smoke and halogen-free performance13.

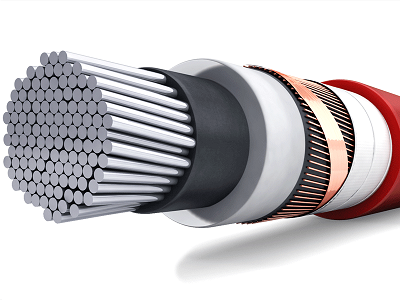

Structural Design
Conductor: Annealed copper or aluminum (IEC 60228 Class 2) for optimal conductivity23.
Insulation: Cross-linked polyethylene (XLPE) for thermal stability up to 90°C13.
Shielding: Copper wire screen to mitigate electromagnetic interference (EMI)23.
Sheath: LSZH (Low Smoke Zero Halogen) material for corrosion and flame resistance13.
Voltage Ratings
Medium Voltage (MV): 35 kV to 69 kV.
High Voltage (HV): 69 kV to 230 kV.
Extra-High Voltage (EHV): Above 230 kV for cross-continental transmission1.
- Advantages of Modern High Voltage Power Cables
Energy Efficiency: Reduced transmission losses (<5%) compared to overhead lines12.
Durability: Resists environmental stressors (UV, moisture, chemicals) for 30+ years13.
Safety: Halogen-free materials prevent toxic gas emissions during fires13.
Space-Saving: Ideal for congested urban areas where overhead lines are impractical1.
- Best Practices for Installation and Maintenance
To maximize HVPC lifespan and performance:
Installation Guidelines:
Avoid sharp bends (minimum bending radius = 15× cable diameter)13.
Use specialized tools for termination and jointing to prevent insulation damage23.
Maintenance Tips:
Conduct annual thermographic inspections to detect hotspots1.
Test insulation resistance periodically using a megohmmeter23.
Safety Protocols:
Ensure proper grounding to prevent electrical faults13.
Label cables clearly and train personnel on emergency shutdown procedures23.
- Conclusion: The Future of High Voltage Power Cables
Reinventing HVPC systems requires adopting advanced materials (e.g., superconducting cables), integrating IoT-based monitoring1, and prioritizing sustainability through recyclable designs3. For B2B clients, investing in CPR-compliant, high-performance cables ensures compliance with global safety standards while future-proofing energy infrastructure12.
