Understanding MV-105 Cable: A Comprehensive Guide

In the world of electrical engineering, the choice of cable can significantly impact the efficiency and safety of power distribution systems. Among the various options available, the MV-105 cable stands out as a reliable choice for medium voltage applications. Hesheng Cable, a leader in wire and cable manufacturing, offers a range of high-quality cables, including the MV-105, designed to meet the rigorous demands of modern electrical systems. In this blog, we will delve into the specifics of MV-105 cable, its ratings, insulation materials, and how it compares to other cables in the market.

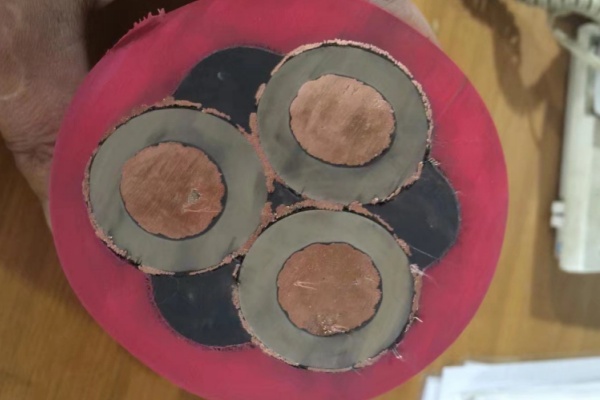

1. Introduction to MV-105 Cable

MV-105 cable is a Medium Voltage Cable designed for use in power distribution systems. It is specifically engineered to operate at voltages up to 35 kV, making it suitable for a variety of applications, including industrial plants, commercial buildings, and utility installations. The “MV” in MV-105 stands for medium voltage, while “105” indicates the maximum operating temperature of the cable, which is 105 degrees Celsius. Hesheng Cable’s MV-105 cable is manufactured with high-quality materials to ensure durability, flexibility, and resistance to environmental factors, making it a preferred choice for engineers and contractors alike.

2. What is the Rating of MV-105 Cable?

The MV-105 cable is rated for medium voltage applications, specifically designed to handle voltages up to 35 kV. This rating makes it ideal for various electrical installations, including substations, underground power distribution, and renewable energy systems. The cable’s construction typically includes a conductor made of copper or aluminum, surrounded by insulation and protective layers. The insulation is crucial for maintaining the cable’s integrity and performance under high voltage conditions. Hesheng Cable ensures that its MV-105 cables meet or exceed industry standards, providing customers with peace of mind regarding safety and reliability.

3. What is the Temperature Rating for MV-105?

The temperature rating for MV-105 cable is a critical factor that influences its performance and longevity. As mentioned earlier, the “105” in MV-105 signifies that the cable can operate at a maximum temperature of 105 degrees Celsius. This temperature rating is essential for applications where cables may be exposed to high ambient temperatures or where heat generation is a concern. Hesheng Cable’s MV-105 cables are designed to maintain their performance even under extreme conditions, ensuring that they can handle the thermal stresses associated with medium voltage applications. This capability is particularly important in industrial settings where equipment may generate significant heat.

4. Why Use EPR as the Insulation, Not XLPE?

When it comes to insulation materials for medium voltage cables, Ethylene Propylene Rubber (EPR) and Cross-Linked Polyethylene (XLPE) are two popular options. However, EPR is often preferred for MV-105 cables due to its superior flexibility, thermal stability, and resistance to environmental factors. EPR insulation can withstand higher temperatures and is less prone to cracking under stress, making it ideal for applications where cables may be subjected to mechanical movement or thermal cycling. Additionally, EPR has excellent dielectric properties, ensuring reliable performance in high-voltage environments. Hesheng Cable utilizes EPR insulation in its MV-105 cables to provide customers with a product that offers both durability and performance.

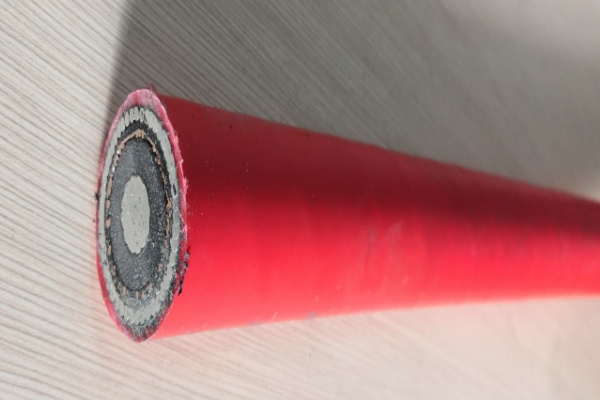

5. What is MV-105 vs. MV-90?

When comparing MV-105 to MV-90 cables, it’s essential to understand the differences in their ratings and applications. MV-90 cables are designed for medium voltage applications as well, but they typically have a lower temperature rating of 90 degrees Celsius. This difference in temperature rating can impact the cable’s performance in high-heat environments. Additionally, MV-105 cables are often constructed with more robust insulation materials, making them suitable for more demanding applications. Hesheng Cable’s MV-105 cables are engineered to provide enhanced performance and reliability, making them a superior choice for projects requiring high-temperature resistance and durability.

6. What is the Difference Between 100% and 133% Mv Cable?

The terms “100%” and “133%” refer to the voltage ratings of medium voltage cables, specifically in relation to their insulation levels. A 100% MV cable is designed to operate at its rated voltage, while a 133% MV cable is engineered to handle voltages that exceed the standard rating by 33%. This additional capacity is crucial for applications where voltage surges or transients may occur. Hesheng Cable offers both 100% and 133% MV-105 cables, allowing customers to choose the appropriate option based on their specific project requirements. The choice between these two types of cables can significantly impact the safety and reliability of electrical systems, making it essential for engineers to understand their differences.

In summary, MV-105 cable is a robust and reliable choice for medium voltage applications, offering a maximum operating temperature of 105 degrees Celsius and a voltage rating of up to 35 kV. With its superior EPR insulation, MV-105 cables provide enhanced flexibility and thermal stability compared to alternatives like XLPE. When comparing MV-105 to MV-90, the former offers better performance in high-temperature environments, while the distinction between 100% and 133% MV cables allows for tailored solutions based on specific project needs. Hesheng Cable, as a leader in wire and cable manufacturing, is committed to providing high-quality MV-105 cables that meet the demands of modern electrical systems. By choosing Hesheng Cable, customers can ensure they are investing in a product that prioritizes safety, reliability, and performance.

For more information on MV-105 cables and other products, visit Hesheng Cable’s website or contact our sales team today. Your electrical projects deserve the best, and we are here to provide it.
