German Standard 0.6/1kv NYCY & NYCWY Cable

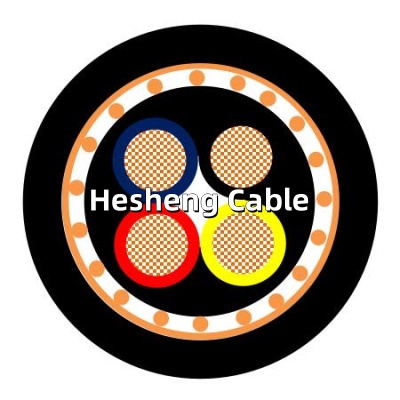

Description of NYCWY Cable

    NYCWY Power cables are used for energy supply, especially underground. They are used in subscriber networks, power stations, and for control impulses and test data. For increased electrical and mechanical protection. These cables are installed in open air, underground, underwater, indoors, and in cable ducts. The corrugated concentric conductor (CW) can be used as a neutral, protective, or earth conductor. It can also be used as a screen, for example, earthed-connected protection against contact. The typical construction of corrugated concentric conductors (Ceander) allows for many more cable joints without cutting any conductor, ensuring reliability.

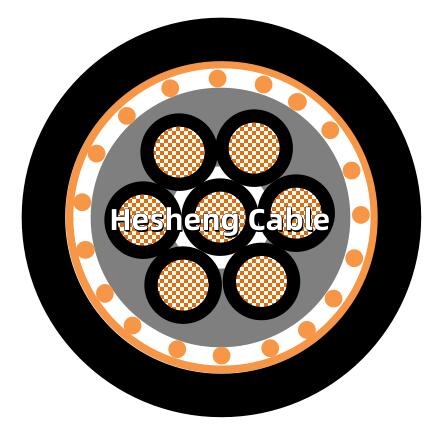

Description of NYCY Cable

NYCY cables are utilized in a multitude of settings, including power plants, industrial and switching installations, street lighting, domestic power supply connections, secondary distribution networks, and more. These cables are often preferred for underground applications as well as interior installation in room and cable ducts and for outdoor applications, indoor installations in the open air, underground, and in water, where greater mechanical

Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 40º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: >100 MΩ x km

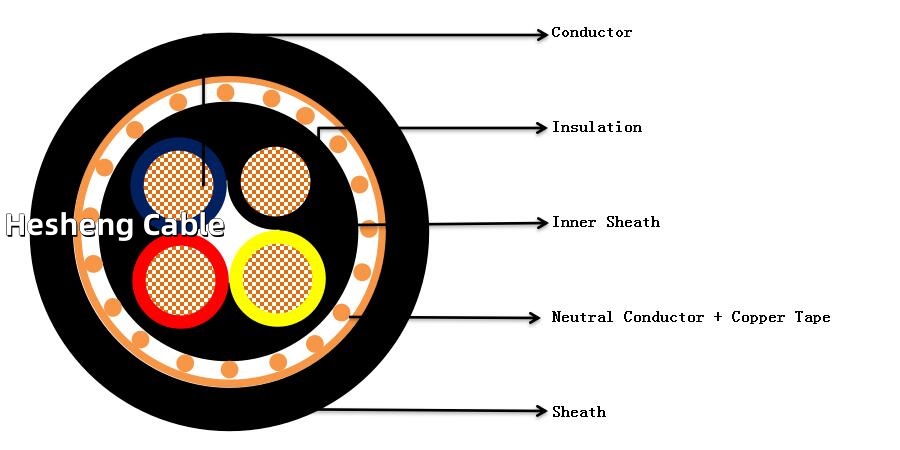

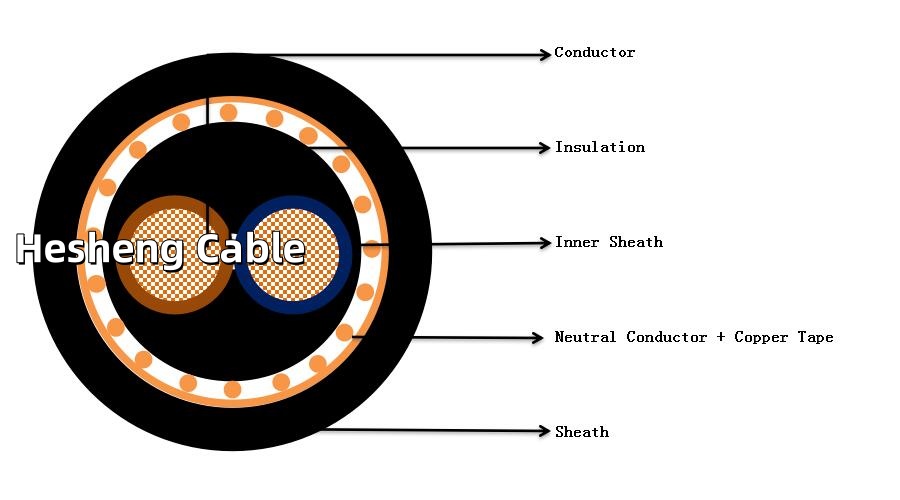

Cable Construction of NYCY	Cable Construction of NYCWY
Solid plain copper conductor to DIN VDE 0295 cl. 1 and IEC 60228 cl. 1 PVC insulation DIV4 to HD 603.1 Color coded to DIN VDE 0293-308, 0276 part 603 or HD 186 PVC filling and bedding Concentric conductor: copper wires and helical copper tape PVC outer jacket DMV5 to HD 603.1	Plain copper conductors solid or stranded versions, conductor types 10-16 mm² round, solid conductors (re) alt. 10-25 mm², stranded conductor (rm), 35-240 mm², sector shaped conductor, stranded (sm) to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1, IEC 60228 and HD 383 PVC insulation DIV4 to HD 603.1 Color coded to DIN VDE 0293-308, 0276 part 603 or HD 186 PVC bedding Concentric conductor: ceander shaped copper wires and helical copper tape PVC outer jacket DMV5 to HD 603.1

Parameters of NYCY, NYCWY Cable

NYCY and NYCWY cables must be used correctly to get the best results.

NYCY Cable:

Installation environment: NYCY cable can be installed anywhere. Make sure the environment is right for the cable and don't expose it to too much moisture or stress.

Cable Routing: Use industry best practices and guidelines to properly route NYCY cable in cable ducts, conduits, or embedded in plaster to prevent damage and ensure reliability.

Compliance: Make sure that NYCY cable is installed correctly, following the relevant standards and regulations.

NYCWY cable:

Mechanical Protection: NYCWY cables are for use in places where they need to be protected from damage. When using NYCWY cable, make sure it is installed in an area where it may be subject to stress, such as direct burial or outdoor installation.

Ground installation: If you bury NYCWY cable, follow the right depth requirements and use the right protective measures to prevent damage.

Follow industry standards for proper installation of NYCWY cable, including grounding, termination, and protection from damage.
