Application
The cables have been designed for use in connection with submersible pumps for the purpose of providing drinking water. They may also be employed in the context of industrial water.
Standard
DIN VDE 0282, part 16
DIN VDE 0295
IEC 60228
DIN VDE 0298
DIN VDE 0472

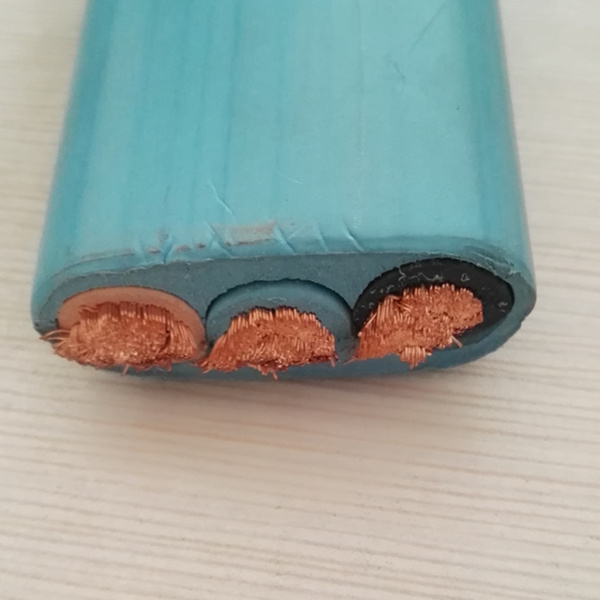

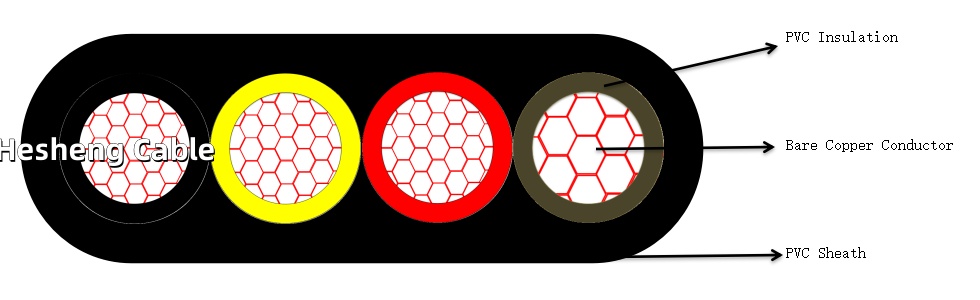

Construction
| Conductor | Bare copper stranded class 5 to VDE0295, IEC 60228. |
| Insulation | HEPR or XLPE. |
| Outer Sheath | EPR type 3GM2, coloured blue. |
TECHNICAL DATA
| Test Voltage 50Hz, 5 min | 2500V |
| Rated Voltage | 450/750V |
| Maximum admissible conductor Temperature in Operation | 90°C |
| Short Circuit Temperature | 250°C |
| Temperature Range | -40°C~+60°C |
Dimensions
| No. of cores × cross-sectional area | Nominal Diameter | Weight |
| mm×mm | kg/km | |
| 3×1.5 | 12.5×5.7 | 102 |
| 3×2.5 | 14.3×6.7 | 173 |
| 3×4 | 16.5×7.9 | 241 |
| 3×6 | 18.5×8.5 | 305 |
| 3×10 | 21.5×9.5 | 455 |
| 3×16 | 25.7×11.5 | 684 |
| 3×25 | 30.6×13.1 | 953 |
| 3×35 | 35.3×15.0 | 1310 |
| 3×50 | 40.7×17.3 | 1820 |
| 3×70 | 47.8×19.8 | 2460 |
| 3×95 | 53.6×22.6 | 3140 |
| 4G1.5 | 15.5×5.9 | 142 |
| 4×2.5 | 17.5×6.7 | 201 |
| 4G4 | 20.5×7.9 | 293 |
| 4G6 | 23.4×8.5 | 384 |
| 4G10 | 27.1×9.5 | 582 |
| 4G16 | 32.8×11.5 | 886 |
| 4G25 | 39.3×13.1 | 1265 |
| 4G35 | 45.4×15.0 | 1710 |
| 4G50 | 52.2×17.3 | 2340 |
| 4G70 | 61.3×19.8 | 3260 |
| 4G95 | 69.5×22.6 | 4130 |
How to use submersible flat pump cable correctly
The submersible pump cable is a special cable used for the power supply and signal transmission of the submersible pump. Its correct use includes the following points
Select the correct submersible pump cable: Select the submersible pump cable with the appropriate specifications according to the power, operating voltage and operating environment of the submersible pump to ensure that the cable can withstand the required current and voltage.
Waterproof and moisture resistant: Submersible pump cables must have good waterproof and moisture-proof properties to ensure normal operation in wet environments.
Safe installation: When laying submersible pump cables, it is important to ensure that the cable connections are strong and reliable to prevent external damage to the cables.
Protective measures: The submersible pump cable must be properly protected during the installation process to prevent the cable from mechanical damage or external impact.
Grounding protection: Grounding of submersible pump cables must comply with relevant standards and specifications to ensure safe and reliable use.
Regular inspection: Check the use of submersible pump cables regularly to ensure that the insulation performance and connection status of the cables are good and that potential problems are detected and dealt with in a timely manner.
Follow relevant standards: When using submersible pump cables, you must comply with relevant safety standards and specifications to ensure safe and reliable use.
In general, the correct use of submersible pump cables requires the selection of appropriate specifications and materials based on the specific application requirements and working environment, and compliance with relevant safety standards and regulations to ensure safe and reliable use. If you are not sure how to use them correctly, it is recommended that you consult a professional electrical engineer or electrician.
