Application
Standard

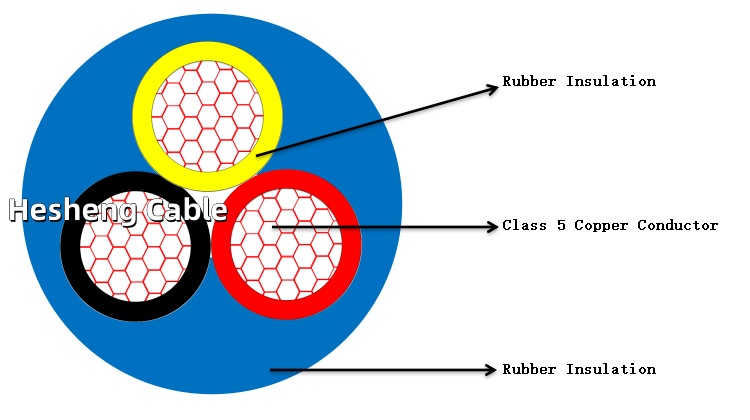

Construction
| Conductor | Bare copper stranded class 5 or class 6 IEC 60228. |
| Insulation | EPR, EPDM can be offered upon request. |
| Outer Sheath | EPR, CPE, Cross-linked EPDM upon request. |
TECHNICAL DATA
| Test Voltage 50Hz, 5 min | 2500V |
| Rated Voltage | 450/750V |
| Maximum admissible conductor Temperature in Operation | 90°C |
| Short Circuit Temperature | 250°C |
| Temperature Range | -40°C~+60°C |
Dimensions
| No. of cores × cross-sectional area | Overall Diameter | Weight | |
| Min. mm | Max. mm | kg/km | |
| 1×1.5 | 5.8 | 7.1 | 53 |
| 1×2.5 | 6.4 | 8.1 | 75 |
| 1×4 | 7.4 | 9.1 | 103 |
| 1×6 | 8 | 11.1 | 134 |
| 1×10 | 9.8 | 12.4 | 201 |
| 1×16 | 11 | 14.6 | 292 |
| 1×25 | 12.5 | 16.6 | 412 |
| 1×35 | 14 | 18.6 | 563 |
| 1×50 | 16.5 | 21.1 | 742 |
| 1×70 | 18.5 | 23.4 | 1010 |
| 1×95 | 21 | 26.1 | 1310 |
| 1×120 | 23.5 | 28.4 | 1660 |
| 1×150 | 26 | 31.3 | 2010 |
| 1×185 | 27.5 | 34.3 | 2520 |
| 1×240 | 30.5 | 38.1 | 3120 |
| 1×300 | 33.5 | 41.6 | 3710 |
| 2×1.5 | 9 | 11.4 | 132 |
| 2×2.5 | 10.5 | 13.4 | 191 |
| 2×4 | 12 | 15.1 | 261 |
| 2×6 | 13.5 | 18.4 | 352 |
| 2×10 | 18.5 | 24.1 | 553 |
| 2×16 | 21 | 27.4 | 905 |
| 2×25 | 25 | 31.3 | 1310 |
| 3×1.5 | 9.6 | 12.6 | 153 |
| 3×2.5 | 11.5 | 14.4 | 223 |
| 3×4 | 13 | 16.1 | 343 |
| 3×6 | 14.5 | 20.1 | 485 |
| 3×10 | 20 | 25.4 | 755 |
| 3×16 | 22.5 | 29.4 | 1110 |
| 3×25 | 26.5 | 34.1 | 1460 |
| 3×35 | 29.5 | 38.1 | 2110 |
| 3×50 | 34.5 | 44.1 | 2820 |
| 3×70 | 39 | 49.4 | 3820 |
| 3×95 | 44 | 54.5 | 4620 |
| 3×120 | 47.5 | 59.2 | 5420 |
| 4G1.5 | 10.5 | 13.4 | 192 |
| 4G2.5 | 12.5 | 15.4 | 283 |
| 4G4 | 14.5 | 18.2 | 393 |
| 4G6 | 16.5 | 22.1 | 525 |
| 4G10 | 22.5 | 24.4 | 955 |
| 4G16 | 26.5 | 28.4 | 1410 |
| 4G25 | 32 | 34.2 | 1960 |
| 4G35 | 33 | 42.4 | 2710 |
| 4G50 | 38 | 48.3 | 3610 |
| 4G70 | 43 | 54.3 | 4910 |
| 4G95 | 50 | 60.3 | 6210 |
| 4G120 | 53 | 65.3 | 7210 |
All points you must to know when use submersible pump cables
When laying submersible pump cables, you need to pay attention to the following points:
Choose the right cable: Make sure to choose a cable that meets the working voltage and current requirements of the submersible pump and has good waterproof performance.
Protect cable connectors: The connectors of submersible pump cables need to be waterproofed to prevent moisture intrusion from causing short circuits or other safety hazards.
Avoid damage: During the laying process, special care must be taken to avoid mechanical damage to the cable, especially where the cable enters the water.
Firmly fixed: Ensure that the cable is firmly fixed to avoid loosening or friction in the water, which may cause damage to the cable.
Avoid excessive bending: When laying the submersible pump cable, avoid excessive bending of the cable to avoid affecting the insulation and conductive properties of the cable.
Regular inspection: Regularly check the use of submersible pump cables to ensure that the insulation performance and connection status of the cables are good, and potential problems are discovered and dealt with in a timely manner.
Follow relevant standards: When using submersible pump cables, you need to follow relevant safety standards and specifications to ensure safe and reliable use.
When laying submersible pump cables, special attention needs to be paid to waterproofing and moisture-proofing, protecting the connectors, avoiding damage and excessive bending, and ensuring the safe and reliable use of the cables.
