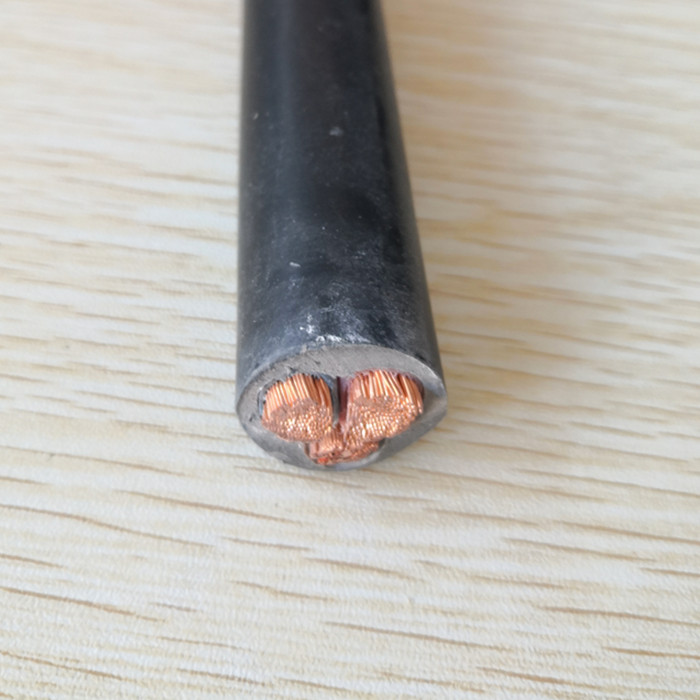

Spanish Standard Industrial Cables RV-K Powerflex Cable

These energy distribution cables are suitable for all types of low-voltage industrial connections. They can be used in urban grids, building installations, etc. They are flexible and can be buried or installed in a tube. They can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions.

    Application of RV-K electrical wire

       These cables are suitable for the distribution of electrical energy and are appropriate for use in a variety of low-voltage industrial contexts, including urban grids, building installations, and similar settings. Their high flexibility facilitates the installation process and renders them particularly well-suited for use in challenging layouts. They can be buried or installed in a tube, and they are also suitable for outdoor use. Additionally, they can be employed in street lighting, building power supply, ship installations, and generator installations. Notably, these cables are capable of withstanding damp conditions, including total immersion in water.

    Technical Parameters of RV-K Powerflex Cable

    Standard and Approval
    UNE 21123-2, IEC 60502; IEEE 383; UNE-EN 50265-2-1, UNE-EN 60502-1, IEC 60332-1

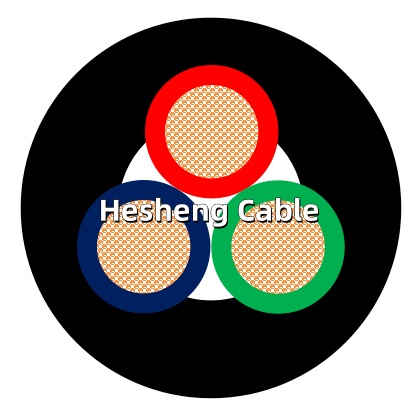

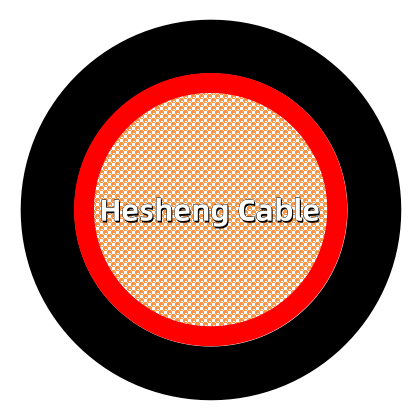

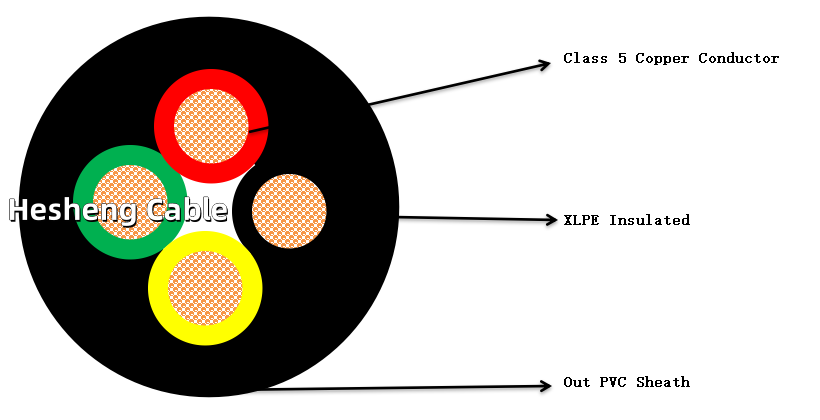

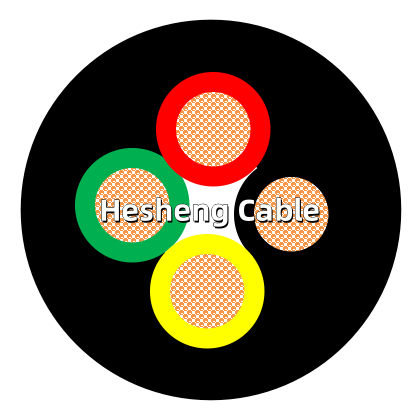

    Cable Construction:


    - Flexible plain copper strands
    - Strands to VDE-0295 Class-5, IEC 60228 Class-5
    - XLPE (Cross-Linked Polyethylene) insulation to IEC60502
    - Color code VDE-0293-308
    - Flexible black PVC (Polyvinyl Chloride) jacket


     Technical Characteristics
    - Voltage Rating: 600/1000V
    - Temperature Rating: -15°C to +90°C
    - Minimum Bending Radius: 5 x overall diameter
    - Flame retardant: IEC 60332.1
    - Insulation resistance: 20 MΩ x km

    No. of Cores x Nominal Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
    # x mm2 mm mm mm kg/km
    1 x 2.5 0.7 1.4 6.3 55
    1 x 4.0 0.7 1.4 6.8 71
    1 x 6.0 0.7 1.4 7.4 91
    1 x 10.0 0.7 1.4 8.3 134
    1 x 16.0 0.7 1.4 9.3 190
    1 x 25.0 0.9 1.4 11.1 285
    1 x 35.0 0.9 1.4 12.2 382
    1 x 50.0 1 1.4 13.9 518
    1 x 70.0 1.1 1.4 15.8 713
    1 x 95.0 1.1 1.5 17.7 924
    1 x 120.0 1.2 1.5 19.3 1166
    1 x 150.0 1.4 1.6 21.6 1447
    1 x 185.0 1.6 1.7 24 1749
    1 x 240.0 1.7 1.8 27 2281
    1 x 300.0 1.8 1.8 29.7 2830
    1 x 400.0 2 2 33.9 3732
    1 x 500.0 2.2 2.2 37.5 4777
    1 x 630.0 2.4 2.4 42.8 6277
    2 x 1.5 0.7 1.8 8.3 91
    2 x 2.5 0.7 1.8 9.3 121
    2 x 4.0 0.7 1.8 10.4 162
    2 x 6.0 0.7 1.8 11.4 212
    2 x 10.0 0.7 1.8 13.3 317
    2 x 16.0 0.7 1.8 15 451
    3 x 1.5 0.7 1.8 9 109
    3 x 2.5 0.7 1.8 9.9 145
    3 x 4.0 0.7 1.8 11.1 199
    3 x 6.0 0.7 1.8 12.2 264
    3 x 10.0 0.7 1.8 14.4 406
    3 x 16.0 0.7 1.8 16.5 594
    3 x 25.0 0.9 1.8 21.4 976
    3 x 35.0 0.9 1.8 24.2 1320
    3 x 50.0 1 1.8 27.9 1813
    3 x 70.0 1.1 1.9 30.9 2464
    4 x 1.5 0.7 1.8 9.8 130
    4 x 2.5 0.7 1.8 10.8 176
    4 x 4.0 0.7 1.8 12.1 244
    4 x 6.0 0.7 1.8 13.5 329
    4 x 10.0 0.7 1.8 15.8 506
    4 x 16.0 0.7 1.8 18.3 750
    4 x 25.0 0.9 1.8 24.2 1246
    4 x 35.0 0.9 1.8 26.4 1672
    4 x 50.0 1 1.8 31.4 2314
    4 x 70.0 1.1 2 36.2 3205
    4 x 95.0 1.1 2.2 40.3 4127
    4 x 120.0 1.2 2.4 44.7 5246
    4 x 150.0 1.4 2.6 49.9 6574
    4 x 185.0 1.6 2.8 56.2 8051
    4 x 240.0 1.7 3 64.6 10696
    5 x 1.5 0.7 1.8 10.5 154
    5 x 2.5 0.7 1.8 11.7 214
    5 x 4.0 0.7 1.8 13.3 299
    5 x 6.0 0.7 1.8 14.8 404
    5 x 10.0 0.7 1.8 17.3 625
    5 x 16.0 0.7 1.8 20.3 932
    5 x 25.0 0.9 1.8 25.7 1556
    5 x 35.0 0.9 1.8 29.4 2077
    5 x 50.0 1 2 34.6 2879



    RV-K cables in the Spanish standard offer the following advantages:

    Good heat resistance: RV-K cable uses cross-linked polyethylene (XLPE) insulation material, which has good heat resistance and is suitable for use in high temperature environments.

    Excellent electrical properties: XLPE insulation makes RV-K cables have good electrical properties, including high insulation resistance and voltage resistance, which is beneficial to power transmission and distribution.

    Good weather resistance: The outer sheath of RV-K cable is usually made of PVC or other weather-resistant materials, which has good weather resistance and is suitable for outdoor laying and use in harsh environments.

    A variety of specifications are available: RV-K cables are available in a variety of specifications and models, suitable for different electrical engineering needs, providing flexible choices.

    Comply with standards: RV-K cables generally comply with the requirements of Spanish standards, ensuring product quality and safety, and are suitable for Spain and other markets that follow similar standards.

    These advantages make RV-K cables widely used in Spain and other markets, and favored by users and industries.
