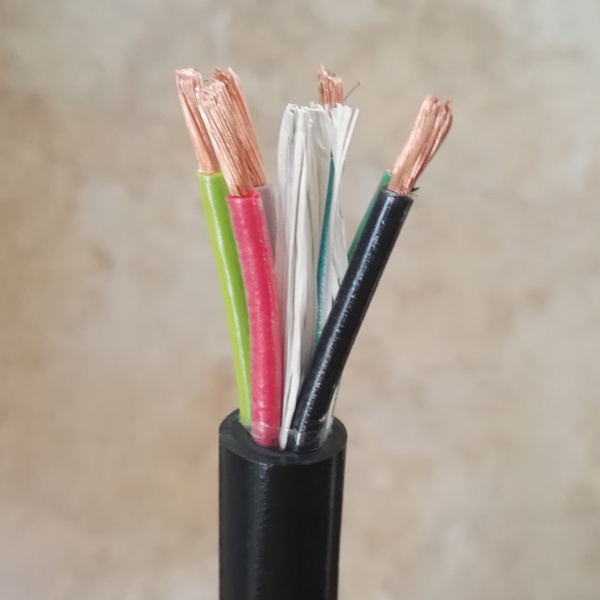

Application
American Standard multi-core nylon wire is used in situations where it needs to withstand high temperatures, high pressure or high mechanical strength. Here are some tips on using American Standard multi-core nylon thread.
Check which scenarios it can be used in. Before using American Standard multi-core nylon thread, check if it is suitable for the task and the environment.
Choose the right specification. Choose the right multi-core nylon wire for the job.
Safe laying. When laying multi-core nylon wire, make sure the layout is reasonable to avoid excessive bending and stress, as well as friction with other equipment or objects.
Insulation protection: Insulate and protect multi-core nylon wire at appropriate locations to prevent damage and short circuits.
Wiring specifications: Follow relevant standards and specifications when wiring multi-core nylon wires to ensure a firm and reliable connection.
Regular inspection: Check the use of multi-core nylon wire regularly to ensure its insulation and connection are good.
Standard
UL 83, ASTM B8
UL 1581
ICEA S-58-679
UL 1685

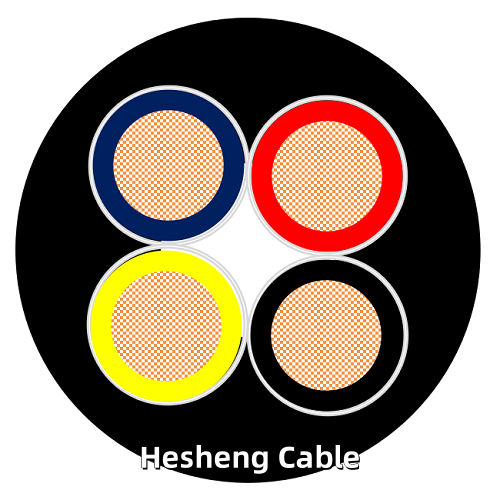

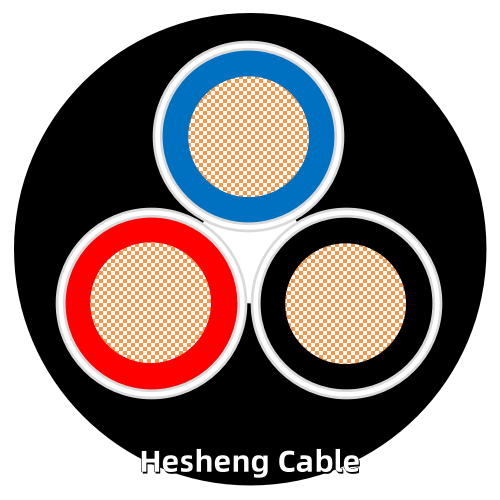

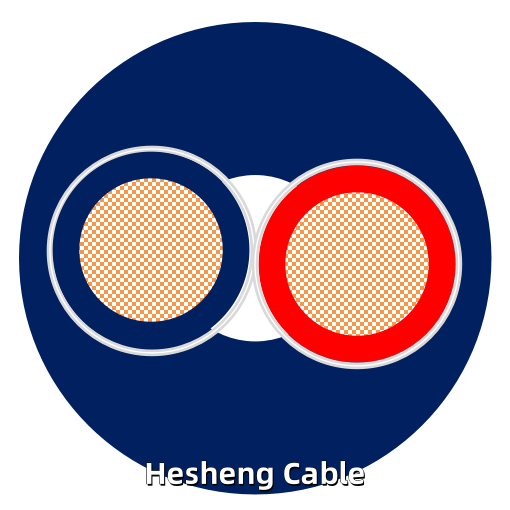

Construction
| Conductor | Soft copper, Class B, Class C, stranding per ASTM B8 |

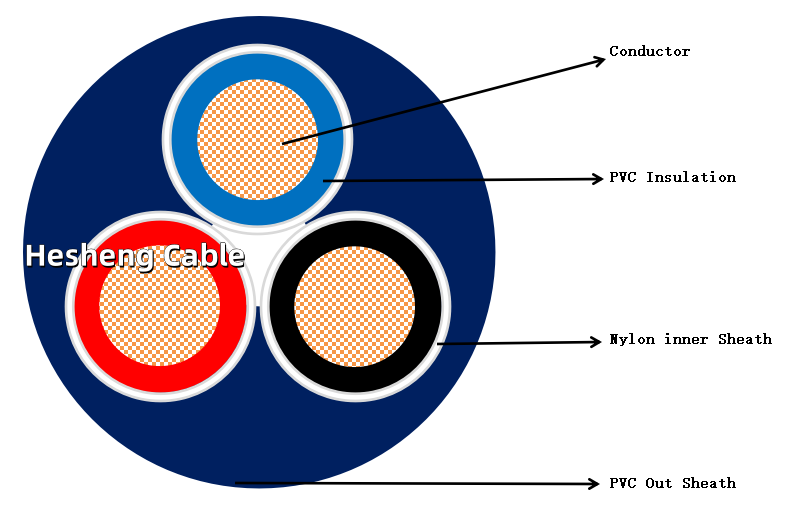

| Insulation | PVC with a nylon jacket |
| Ground Wire | Soft annealed bare copper, Class B stranding per ASTM B8 |
| Jacket | PVC |
| Color | Upon request |
Parameter
| Cross Section | Number of Conductors | Nominal jacket thickness | Nominal Overall Diameter | Cable weight |
| mm | mm | kg/km | ||
| 16 | 2 | 1.14 | 7.35 | 64.2 |
| 3 | 1.14 | 7.72 | 79.3 | |
| 4 | 1.14 | 8.38 | 98.4 | |
| 5 | 1.14 | 9.1 | 120.5 | |
| 7 | 1.14 | 9.6 | 153.6 | |
| 9 | 1.14 | 11.6 | 199.8 | |
| 12 | 1.14 | 12.9 | 245.6 | |
| 15 | 1.52 | 14.9 | 324.5 | |
| 19 | 1.52 | 15.4 | 391.4 | |
| 25 | 1.52 | 18.3 | 504.5 | |
| 30 | 2.03 | 19.2 | 589.4 | |
| 37 | 2.03 | 20.9 | 709.2 | |
| 14 | 2 | 1.14 | 7.82 | 83.1 |
| 3 | 1.14 | 8.21 | 110.5 | |
| 4 | 1.14 | 8.91 | 139.6 | |
| 5 | 1.14 | 9.72 | 162.3 | |
| 6 | 1.14 | 10.3 | 192.2 | |
| 7 | 1.14 | 10.55 | 215.1 | |
| 8 | 1.14 | 11.36 | 243.1 | |
| 9 | 1.14 | 12.27 | 272 | |
| 10 | 1.52 | 14.8 | 323 | |
| 12 | 1.52 | 14.6 | 375 | |
| 15 | 1.52 | 15.8 | 455 | |
| 19 | 1.52 | 16.72 | 553 | |
| 20 | 1.52 | 17.63 | 582 | |
| 25 | 1.52 | 19.45 | 720 | |
| 30 | 1.52 | 20.68 | 850 | |
| 37 | 2.03 | 23.23 | 1080 | |
| 12 | 2 | 1.14 | 8.61 | 111 |
| 3 | 1.14 | 9.22 | 154 | |
| 4 | 1.14 | 10.2 | 192 | |
| 5 | 1.14 | 10.8 | 228 | |
| 6 | 1.14 | 11.7 | 273 | |
| 7 | 1.14 | 11.83 | 309 | |
| 8 | 1.14 | 12.82 | 3450 | |
| 9 | 1.52 | 14.51 | 413 | |
| 10 | 1.52 | 15.84 | 458 | |
| 12 | 1.52 | 16.35 | 534 | |
| 15 | 1.52 | 18.1 | 655 | |
| 19 | 1.52 | 18.8 | 805 | |
| 20 | 1.52 | 19.92 | 846 | |
| 25 | 2.03 | 23.12 | 1095 | |
| 30 | 2.03 | 24.44 | 1285 | |
| 37 | 2.03 | 26.35 | 1559 | |
| 10 | 2 | 1.14 | 10.35 | 167 |
| 3 | 1.14 | 11.1 | 232 | |
| 4 | 1.14 | 12.2 | 295 | |
| 5 | 1.52 | 13.8 | 372 | |
| 6 | 1.52 | 15.5 | 438 | |
| 7 | 1.52 | 15.6 | 496 | |
| 8 | 1.52 | 16.7 | 562 | |
| 9 | 1.52 | 17.9 | 627 | |
| 10 | 1.52 | 19.22 | 695 | |
| 12 | 1.52 | 19.82 | 814.5 | |
| 15 | 2.03 | 23.15 | 1055 | |
| 19 | 2.03 | 24.26 | 1295 | |
| 20 | 2.03 | 25.58 | 1362 | |
| 25 | 2.03 | 28.29 | 1678 | |
| 30 | 2.03 | 29.93 | 1980 | |
| 37 | 2.03 | 32.35 | 2410 |
