Application
Based on Station Cable technology, the remote radio unit (RRU) is designed to supply 48V DC power in outdoor or indoor settings. The RRU cable is specifically engineered for communication purposes and is utilized in a radio base station. The connection between the RRU and the controller is typically optical. The braided shielding serves to safeguard the signal from interference during the transmission of data in 3G, 4G, 5G, and 5.5G networks.

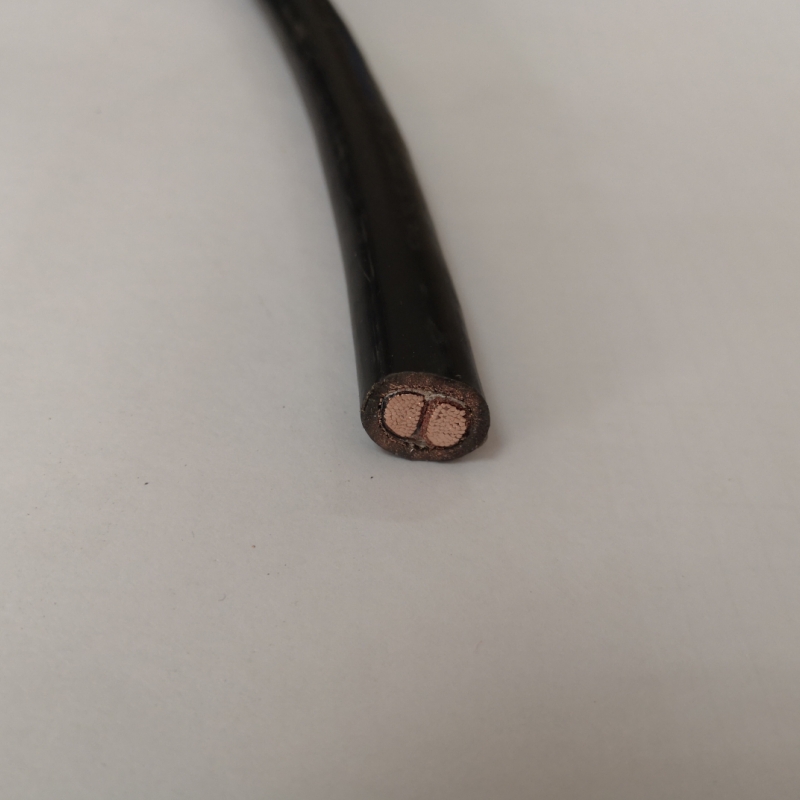

Hot Sizes of RRU DC Shielded Cable
1.2x4mm2, 2x6mm2, 2x10m2, 2x16mm2, 2x25mm2,
2.2*12awg. 2*10awg, 2*8awg, 2*6awg, 2*4awg
2.2*12awg. 2*10awg, 2*8awg, 2*6awg, 2*4awg
Standard
IEC 60332-3, IEC60228, UL 1581

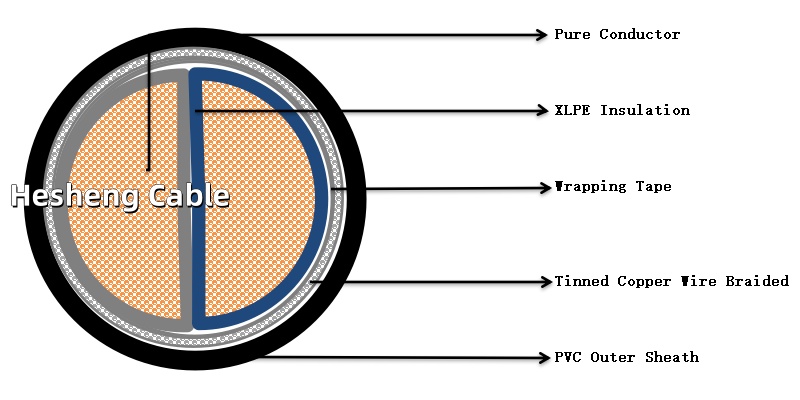

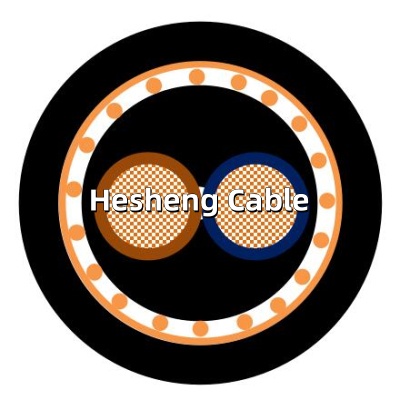

Construction
Conductor Material: Class 5 Tinned Copper Wire, Class 5 copper wire, aluminum alloy etc.
Insulation Material: PVC, Low Smoke Zero Halogen or XLPE (Crosslinked Polyethylene)
Colour of Insulation: Black and Grey
Screened Material: Aluminum Foil+Tinned Copper Wire Braided
Out Sheath Material: Low Smoke Zero Halogen
Colour of Sheath: Black or Grey
Insulation Material: PVC, Low Smoke Zero Halogen or XLPE (Crosslinked Polyethylene)
Colour of Insulation: Black and Grey
Screened Material: Aluminum Foil+Tinned Copper Wire Braided
Out Sheath Material: Low Smoke Zero Halogen
Colour of Sheath: Black or Grey
Technical Data
Working Temperature of PVC: 70°C
Working Temperature of XLPE:90°C
Working Temperature of LSZH:90°C
Shielded Flexible Cable:R≥ 6D
Voltage:300/500V
Working Temperature of XLPE:90°C
Working Temperature of LSZH:90°C
Shielded Flexible Cable:R≥ 6D
Voltage:300/500V
600V

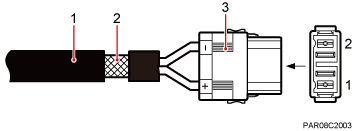

1-48 V DC power cable
2 Shield layer
3 Tool-less female connector
2 Shield layer
3 Tool-less female connector
| No. of cores and cross-section mm2 | Conductor | Insulation | Dia OF Insulation | DIA of Braided | Out Sheath | DIA of Cable | Cable weight kg/km | Resistance of Cable |
| 2*2.5mm2 | 49/0.25 | 0.7 | 3.5 | 0.15 | 1.2 | 8.05 | 150 | 7.98 |
| 2*4mm2 | 56/0.3 | 0.7 | 4 | 0.15 | 1.2 | 8.8 | 160 | 4.95 |
| 2*6mm2 | 84/0.3 | 0.7 | 5.2 | 0.15 | 1.2 | 10.6 | 220 | 3.3 |
| 2*10mm2 | 84/0.4 | 0.7 | 6.5 | 0.15 | 1.2 | 12.55 | 250 | 1.91 |
| 2*16mm2 | 126/0.4 | 0.7 | 7.4 | 0.15 | 1.4 | 14.3 | 320 | 1.21 |
| 2*25mm2 | 196/0.4 | 0.9 | 12 | 0.15 | 1.8 | 22 | 550 | 0.78 |
| 2*35mm2 | 276/0.4 | 0.9 | 10.7 | 0.15 | 1.8 | 20.05 | 610 | 0.554 |

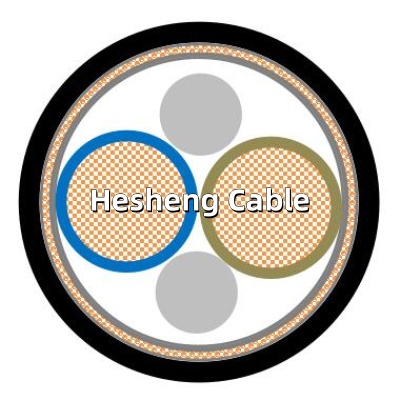

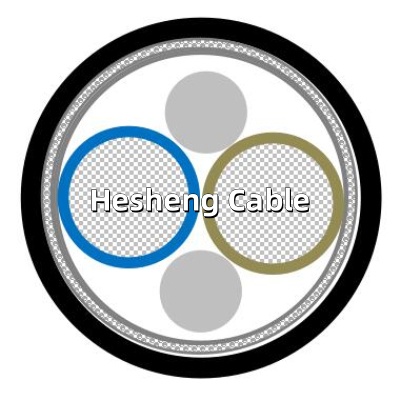

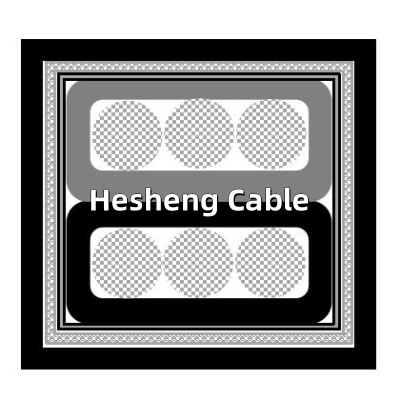

All models of Huawei Base station power cable
Huawei base station cables connect base station equipment to transmit power, signals, and data. Huawei base station cables come in different types for different uses and environments.
Radio frequency coaxial cable: connects the antenna and transceiver of the base station to transmit radio frequency signals.
A power cable connects base station equipment and power systems and transmits power signals. It must be resistant to high temperatures, wear and corrosion.
A power cable connects base station equipment and power systems and transmits power signals. It must be resistant to high temperatures, wear and corrosion.
Optical fibre cable. Optical fibre transmission equipment connects base stations, transmits optical signals and has good anti-interference and large-capacity transmission capabilities.
Control cable: connects control signals of base station equipment and transmits control instructions and signals. It needs to be reliable and not interfere with other things.
These are some common types of Huawei base station cables. The right cable type can meet the needs of a base station.
