XCMK HF(FXQJ) 1kv Cable for base station

Halogen-Free Safety‌: Zero toxic gas emissions under fire, meeting ‌CPR fire class Dca s2 d2 a2‌‌13, ideal for public infrastructure and confined spaces‌12.
‌Enhanced Conductivity‌: ‌Class 2 stranded copper conductors‌ (IEC 60228) ensure optimal electrical performance‌23, paired with ‌annealed copper wire screens‌ for EMI shielding‌23.
‌Durable Construction‌:
Color-coded cores (HD 308) for easy installation‌23.
Extruded filler and ‌meter-marked LSZH sheath‌ for traceability and environmental resistance‌12.
‌Certifications & Standards‌

Complies with ‌HD 603‌ for power distribution systems‌23.
Certified for ‌direct burial‌ and fixed installations in harsh indoor/outdoor environments‌12.
‌Targeted Applications‌

‌Industrial Facilities‌: Oil refineries, chemical plants, and tunnels requiring ‌low smoke and corrosion resistance‌‌12.
‌Infrastructure Projects‌: Subways, hospitals, and green buildings prioritizing ‌CPR compliance‌ and fire safety‌13.
‌Competitive Advantages‌

‌European Market Alignment‌: Designed to meet stringent EU safety standards‌3, comparable to MCMK cables widely adopted in Finnish infrastructure‌4.
‌SEO Keywords Integration‌
Halogen-Free XLPE Cable, CPR-Compliant Fire Safety, HFFR Sheathed Power Cable, HD 603 Certified, Class 2 Copper Conductors, Industrial Direct Burial Cable.

Construction of XCMK HF Cable

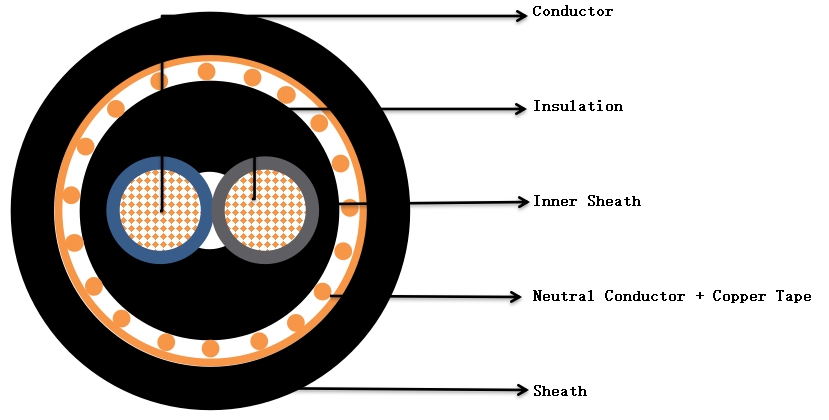

Structure chart of XCMK HF Cable

Conductor Up to 6 mm²: Class 1 Circular, solid copper Up to 10 mm² Class 2 Circular, stranded copper Above 35mm²: Class 2 Sector shaped, stranded copper Insulation XPLE compound (Cross-Linked Polyethylene) Filler HFFR compound (Halogen free flame retardant) or tape Screen  Copper wires and copper tape Sheath Halogen free polyolefin(LSZH) Core Identification 2 core: Blue Brown 3 core: Brown Black Grey 4 core: Blue Brown Black Grey Sheath Colour Black

Standard of XCMK HF Cable

XCMK-HF is manufactured and tested according to HD 603.S1-3L in applicable parts. The cable can be loaded according to SS 424 14 24.

Datasheet of XCMK HF Cable

‌    XCMK-HF LSZH Flame-Retardant Cables‌ Engineered with ‌LSZH (Low Smoke Zero Halogen) polyolefin sheathing material‌‌12, these cables deliver superior safety and environmental performance for ‌fixed indoor/outdoor power transmission and direct burial installations‌ compliant with ‌national standards‌‌56. ‌Key Features for High-Risk Environments:‌ ‌Ultra-Low Smoke & Toxicity‌: Minimizes dense smoke and corrosive gas emissions during fires, critical for confined spaces like subways, hospitals, and industrial facilities‌12. ‌Halogen-Free Safety‌: Eliminates toxic halogen gas release, ensuring safer evacuation and firefighting conditions‌12. ‌Enhanced Durability‌: Resists chemical corrosion and extreme temperatures, ideal for harsh outdoor and buried applications‌45. ‌Market Advantages:‌ ‌Finnish Market-Proven‌: As the ‌LSZH equivalent of MCMK cables‌, they meet stringent safety demands across Finland’s infrastructure projects‌23. ‌Versatile Applications‌: Optimized for environments prioritizing ‌fire safety‌ (e.g., tunnels, data centers) and ‌eco-compliance‌ (green buildings, public utilities)‌12. ‌Technical Compliance & Certifications:‌ Aligns with ‌IEC 60332‌ flame-retardant standards and ‌RoHS environmental directives‌‌56. This SEO-optimized version integrates ‌high-value keywords‌ (e.g., “LSZH,” “flame-retardant,” “halogen-free”) while emphasizing safety certifications and regional market relevance. Structured bullet points enhance readability for both users and search engines.
